Fuel tank for BMW 1502-2002tii 1602 (1975)

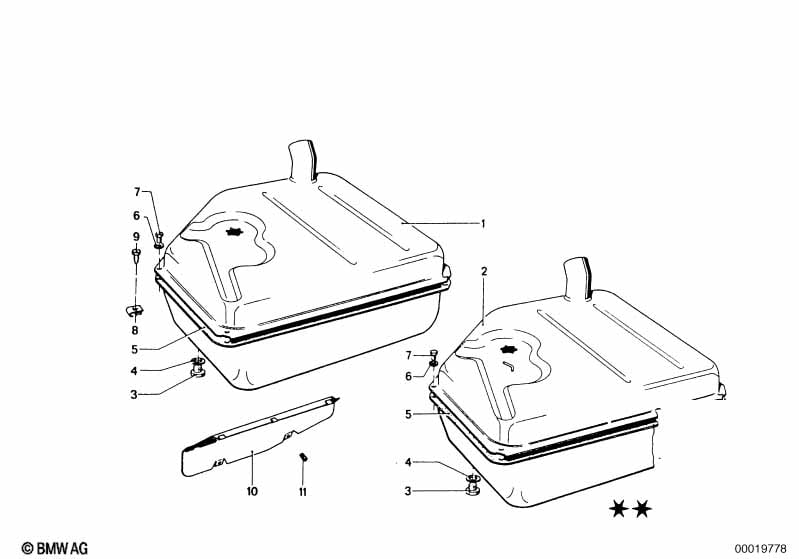

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel tank | 46 L | 1 | 04/1971 | 07/1977 | 16111110613 | $420.73 | ENDED | Shop at ECS Tuning | |
| only in conjunction with | ||||||||||
| -- | Filler pipe | 1 | 04/1971 | 07/1977 | 16111105714 | $83.94 | Shop at ECS Tuning | |||
| 01 | Fuel tank | 51 L | 1 | 04/1971 | 07/1977 | 16111111567 | $490.01 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Filler pipe | 1 | 04/1971 | 07/1977 | 16111105714 | $83.94 | Shop at ECS Tuning | |||
| 03 | Screw plug | M10X1-ST-ZNS3 | 1 | 03/1966 | 07/1976 | 07119904393 | $1.89 | Shop at ECS Tuning | ||
| 04 | Gasket ring | A10X13,5-CU | 1 | 03/1966 | 07/1976 | 07119963072 | $0.11 | Shop at ECS Tuning | ||
| 05 | Gasket | SELBSTKLEBEND | 1 | 16111117053 | $17.96 | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 03/1971 | 07/1977 | 16111117052 | $10.32 | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-200HV-ZNS3 | 5 | 03/1971 | 07/1977 | 07119903791 | $0.11 | Shop at ECS Tuning | ||
| 07 | Fillister-head screw | M6X18 | 5 | 03/1971 | 07/1977 | 07119919781 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 1602 Fuel tank?
- This technical diagram illustrates the Fuel tank within the Fuel Supply group for the 1502-2002tii 1602 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Fuel tank (Part #16111110613).
- Which models use the hardware listed in this Fuel tank?
- The hardware and components featured in the Fuel tank are specific to the 1502-2002tii 1602 produced during 1975. These technical specifications ensure that parts like the Fuel tank (16111110613) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank assembly?
- Each item in the Fuel tank corresponds to the numbered list below the illustration. For the 1502-2002tii 1602, you can identify the Fuel tank by locating its position on the schematic, which then links to the official BMW part number 16111110613 for the Fuel Supply section.
