Metal fuel tank for BMW 2.5CS-3.0CSL 2.5CS (1975)

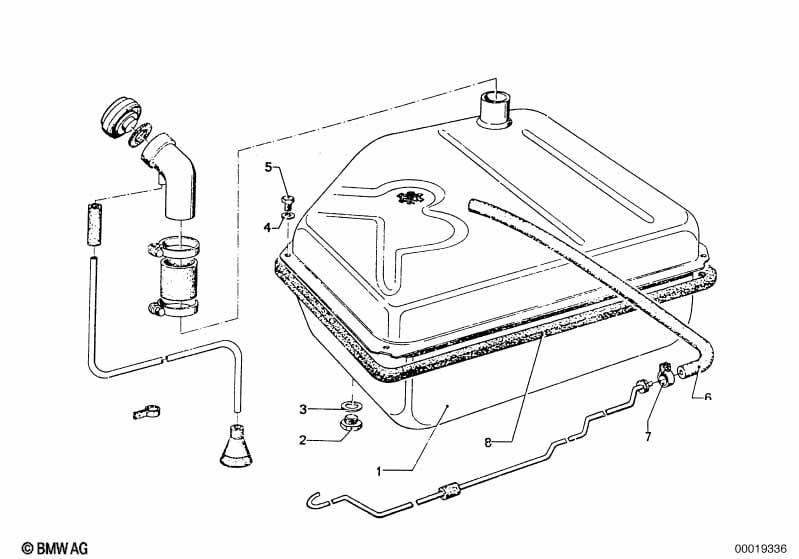

This Metal fuel tank technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Screw plug | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 07 | Hose clamp | L=9-12 | 3 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Metal fuel tank?
- This technical diagram illustrates the Metal fuel tank within the Fuel Supply group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Screw plug (Part #07119904393).
- Which models use the hardware listed in this Metal fuel tank?
- The hardware and components featured in the Metal fuel tank are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Screw plug (07119904393) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Metal fuel tank assembly?
- Each item in the Metal fuel tank corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Screw plug by locating its position on the schematic, which then links to the official BMW part number 07119904393 for the Fuel Supply section.
