Fuel tank for BMW 2500-3.3Li 2500 (1971)

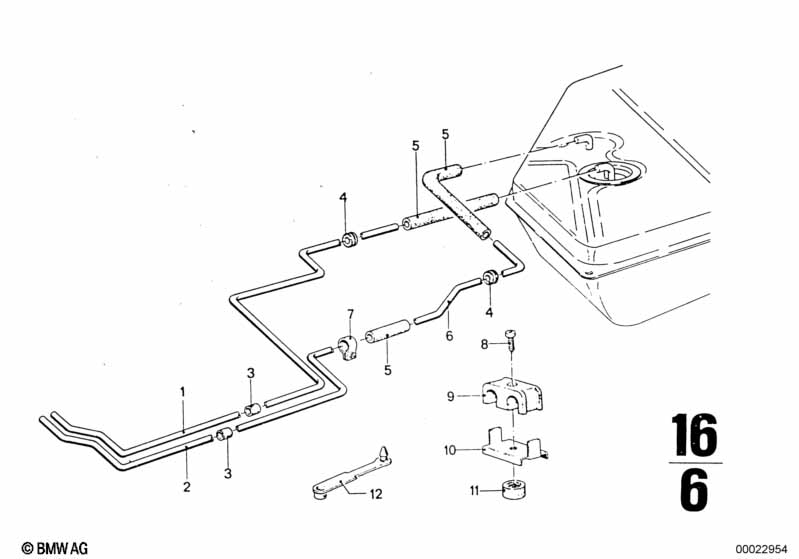

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel pipe | 1 | 08/1968 | 02/1977 | 16121100204 | ENDED | Shop at ECS Tuning | |||
| 01 | Fuel pipe | 1 | 08/1968 | 02/1977 | 16121108129 | $30.52 | ENDED | Shop at ECS Tuning | ||
| 03 | Rubber grommet | 11 | 16124584137 | $2.26 | Shop at ECS Tuning | |||||
| 04 | Grommet | 1 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 05 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 12 | Cable holder | 70MM | 2 | 08/1968 | 02/1977 | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Fuel tank?
- This technical diagram illustrates the Fuel tank within the Fuel Supply group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Fuel pipe (Part #16121100204).
- Which models use the hardware listed in this Fuel tank?
- The hardware and components featured in the Fuel tank are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Fuel pipe (16121100204) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank assembly?
- Each item in the Fuel tank corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Fuel pipe by locating its position on the schematic, which then links to the official BMW part number 16121100204 for the Fuel Supply section.
