Fuel tank for BMW R 68 -54 R68 (1954)

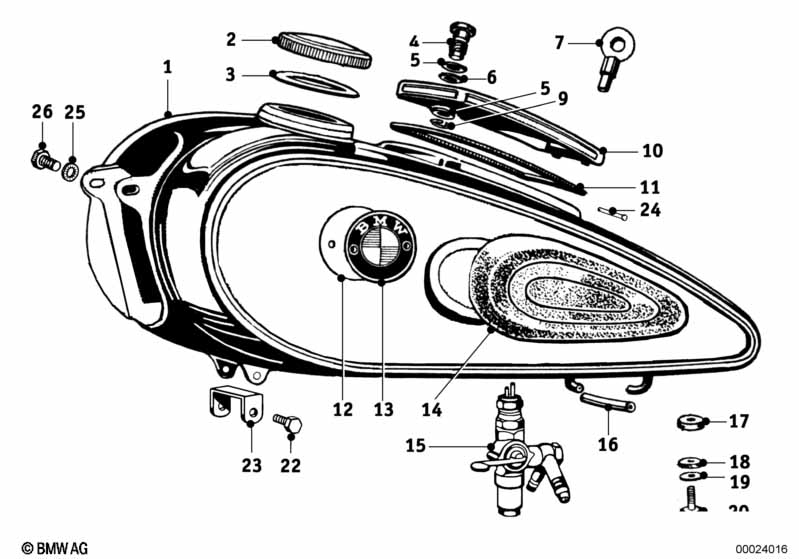

This Fuel tank technical drawing provides a detailed breakdown of the assembly for the R 68 -54 R68. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1954.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Fuel filler cap, serrated, aluminum | 1 | 51250035314 | $33.91 | +core | Shop at ECS Tuning | ||||
| 04 | Screw | 1 | 12/1950 | 12/1955 | 16114080165 | $12.61 | ENDED | Shop at ECS Tuning | ||
| 05 | Washer | 10-200HV-ZNNIV | 1 | 12/1950 | 12/1955 | 07119907114 | Shop at ECS Tuning | |||
| 06 | Rubber washer | A10X16-GI | 1 | 12/1950 | 12/1955 | 07119963108 | $1.59 | Shop at ECS Tuning | ||
| 07 | Square wrench | 1 | 12/1950 | 12/1955 | 16114080172 | $12.17 | ENDED | Shop at ECS Tuning | ||
| 10 | Cover tool container schwarz | LACKIERT | 1 | 16110008907 | $71.32 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover tool container prime coated | 1 | 12/1950 | 12/1955 | 16111231298 | $58.44 | +core | Shop at ECS Tuning | ||
| 12 | Base | 2 | 51146040110 | $1.76 | Shop at ECS Tuning | |||||
| 13 | Badge | 2 | 51140035269 | $51.71 | Shop at ECS Tuning | |||||
| 14 | Knee padding | R25-51/3-68 | 2 | 16114080184 | $25.04 | Shop at ECS Tuning | ||||
| 17 | Rubber Mounting | 2 | 16114080248 | $4.05 | Shop at ECS Tuning | |||||
| 18 | Rubber washer | 2 | 16114080148 | $2.24 | Shop at ECS Tuning | |||||
| 20 | Hex bolt | M8X1X30 | 2 | 16110010260 | $5.66 | Shop at ECS Tuning | ||||
| 23 | Clamping bracket | 1 | 16110010296 | $12.51 | ENDED | Shop at ECS Tuning | ||||
| 24 | Pin | 2 | 16114080176 | $5.39 | Shop at ECS Tuning | |||||
| 25 | Hex bolt | M8X1X15-8.8-ZNS | 2 | 07119914005 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R 68 -54 R68 Fuel tank?
- This technical diagram illustrates the Fuel tank within the Fuel Supply group for the R 68 -54 R68 produced during 1954. It provides a detailed exploded view of the components, identifying key parts such as the Fuel filler cap, serrated, aluminum (Part #51250035314).
- Which models use the hardware listed in this Fuel tank?
- The hardware and components featured in the Fuel tank are specific to the R 68 -54 R68 produced during 1954. These technical specifications ensure that parts like the Fuel filler cap, serrated, aluminum (51250035314) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank assembly?
- Each item in the Fuel tank corresponds to the numbered list below the illustration. For the R 68 -54 R68, you can identify the Fuel filler cap, serrated, aluminum by locating its position on the schematic, which then links to the official BMW part number 51250035314 for the Fuel Supply section.
