Fuel pipe and mounting parts for BMW 5 Series E39 540i (2003)

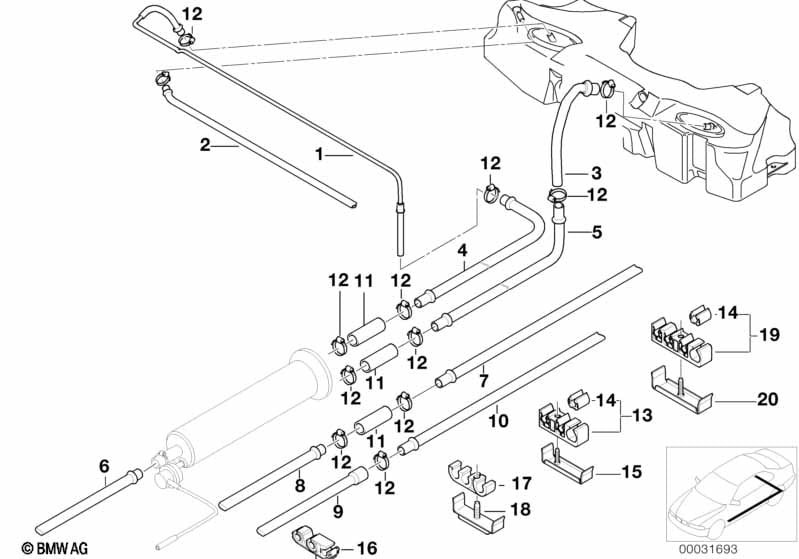

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FUEL FILTER see main section 13 |
|||||||||
| 01 | Fuel pipe | 1 | 16111183297 | $19.50 | Shop at ECS Tuning | |||||
| 02 | Vent pipe | 1 | 16111183301 | $20.23 | Shop at ECS Tuning | |||||
| 03 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 04 | Fuel supply line rear | 1 | 16121184162 | $9.75 | Shop at ECS Tuning | |||||
| 04 | Fuel supply line rear | 1 | 09/1998 | 16121184162 | $9.75 | Shop at ECS Tuning | ||||
| 05 | Fuel return line rear | 1 | 16121184158 | $11.35 | Shop at ECS Tuning | |||||
| 05 | Fuel return line rear | 1 | 09/1998 | 16121184158 | $11.35 | Shop at ECS Tuning | ||||
| 06 | Fuel supply line front | 1 | 16121184161 | $24.97 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fuel supply line front | 1 | 09/1998 | 16121184161 | $24.97 | ENDED | Shop at ECS Tuning | |||
| 07 | Ventilation line ACF rear | 1 | 16131183153 | $9.93 | Shop at ECS Tuning | |||||
| 08 | Ventilation line ACF front | 1 | 05/2000 | 16126751006 | $8.13 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 13 | Tubing support | 3 | 16121182658 | $1.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber buffer | 3 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 14 | Rubber buffer | 3 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 15 | bracket for line holder | 3 | 16121182660 | $1.62 | Shop at ECS Tuning | |||||
| 16 | Tubing support | 1 | 16121183468 | $2.00 | Shop at ECS Tuning | |||||
| 17 | Tubing support | 1 | 16121118686 | $2.68 | Shop at ECS Tuning | |||||
| 18 | Holder | 1 | 16121155064 | $1.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
