Fuel pipe, Diesel pump for BMW 5 Series E39 530d (2000)

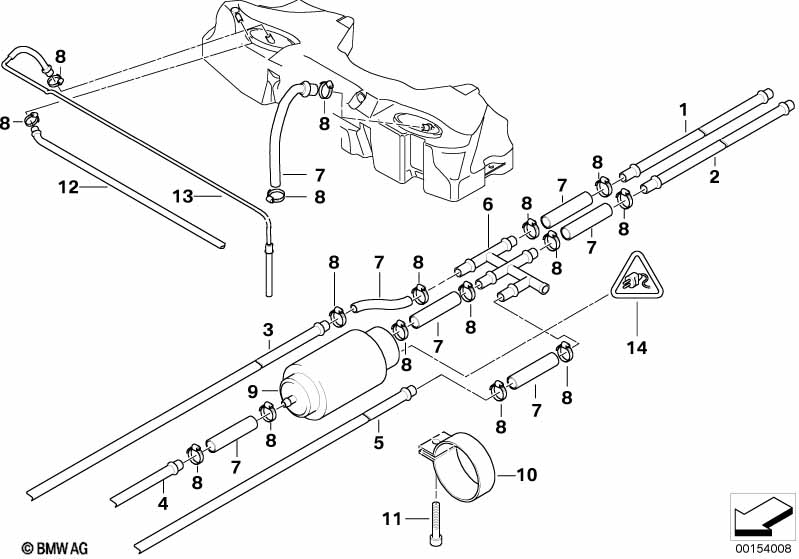

This Fuel pipe, Diesel pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear fuel pipe | 1 | 05/2001 | 16121184768 | Shop at ECS Tuning | |||||
| 02 | Rear fuel pipe | 1 | 05/2001 | 16121184768 | Shop at ECS Tuning | |||||
| 03 | Fuel return line front | I | 1 | 05/2001 | 16121184777 | Shop at ECS Tuning | ||||
| 04 | Fuel supply line front | 1 | 05/2001 | 16121184774 | Shop at ECS Tuning | |||||
| 05 | Fuel return line front | II | 1 | 05/2001 | 16121184780 | Shop at ECS Tuning | ||||
| 06 | Distribution piece | 1 | 05/2001 | 16121184632 | Shop at ECS Tuning | |||||
| 07 | Fuel hose | 8X13MMX1000 | X | 05/2001 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| Rape methyl ester capability (RME) | ||||||||||
| 08 | Hose clamp | L12-15 | X | 05/2001 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 09 | Diesel pump | 1 | 05/2001 | 16126756157 | $363.20 | Shop at ECS Tuning | ||||
| For vehicles with Rape methyl ester version (RME) |
S201A=Yes |
|||||||||
| 09 | Diesel pump | 1 | 05/2001 | 16126756157 | $363.20 | Shop at ECS Tuning | ||||
| 10 | Bracket fuel strainer | D=55MM | 1 | 05/2001 | 13321702583 | $16.33 | Shop at ECS Tuning | |||
| 11 | Internal Torx screw with washer | M6X25-U1-8.8 | 1 | 05/2001 | 07129905558 | $0.44 | Shop at ECS Tuning | |||
| 12 | Vent pipe | 1 | 05/2001 | 16111183301 | $20.23 | Shop at ECS Tuning | ||||
| 13 | Fuel pipe | 1 | 05/2001 | 16111183297 | $19.50 | Shop at ECS Tuning | ||||
| 14 | Universal socket housing uncoded | 2 POL. | 1 | 61138373332 | $2.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | 2 | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
