Exp.tank/activated Carbon container for BMW 3 Series E46 330Ci (2006)

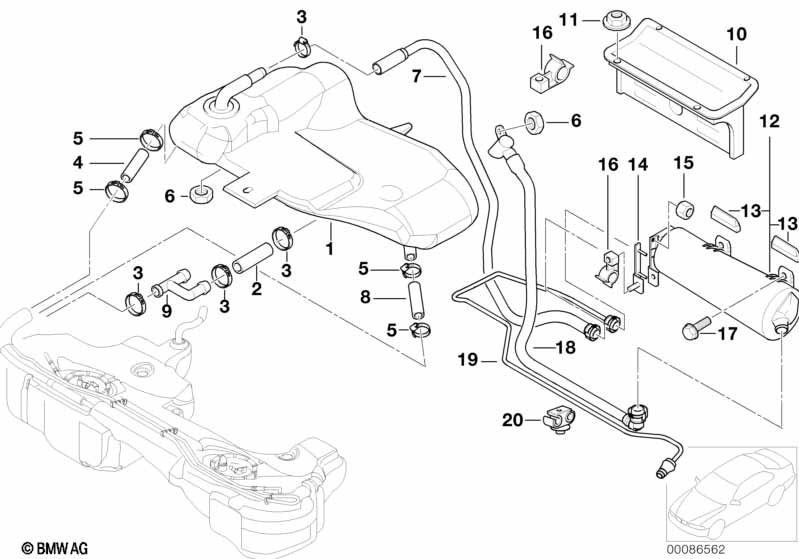

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Expansion tank | 1 | 16132283280 | Shop at ECS Tuning | ||||||
| 02 | Fuel hose | D18X24X65 | 1 | 05/2001 | 16116772266 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 23,9-27,1 | 4 | 05/2001 | 11631716970 | $0.79 | Shop at ECS Tuning | |||
| 04 | Hose | D8 / D6 | 1 | 16137177605 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | 12,8-15,3 | 4 | 05/2001 | 16121180240 | $0.77 | Shop at ECS Tuning | |||
| 06 | Plastic nut | 2 | 05/2001 | 51711958025 | $0.26 | Shop at ECS Tuning | ||||
| 07 | Vent pipe | 1 | 16137176508 | $50.70 | Shop at ECS Tuning | |||||
| 08 | Fuel hose | 8X13MMX1000 | X | 05/2001 | 13537563456 | $44.77 | Shop at ECS Tuning | |||
| 09 | Distribution piece | 3 X D18 | 1 | 16117175999 | +core | Shop at ECS Tuning | ||||
| 12 | Activated Charcoal Filter | 1 | 05/2001 | 16136753872 | $272.47 | Shop at ECS Tuning | ||||
| 13 | Cap | 1 | 05/2001 | 16131183918 | $3.32 | Shop at ECS Tuning | ||||
| 14 | Bracket activated Carbon container | 1 | 05/2001 | 16136753873 | Shop at ECS Tuning | |||||
| 15 | Hex nut | 2 | 05/2001 | 61131372722 | $0.28 | Shop at ECS Tuning | ||||
| 16 | Cable clip | D18 | 4 | 05/2001 | 16131183931 | $1.08 | Shop at ECS Tuning | |||
| 17 | Hex bolt with washer | M6X23 | 2 | 05/2001 | 07119905591 | $0.29 | Shop at ECS Tuning | |||
| 18 | Vent pipe | 1 | 05/2001 | 16136753875 | ENDED | Shop at ECS Tuning | ||||
| 19 | Scavenge air line | 1 | 05/2001 | 16136751175 | $15.25 | Shop at ECS Tuning | ||||
| 20 | Pipe clip | 1 | 05/2001 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | |||
