Fuel lines for BMW M1 E26 M1 (1981)

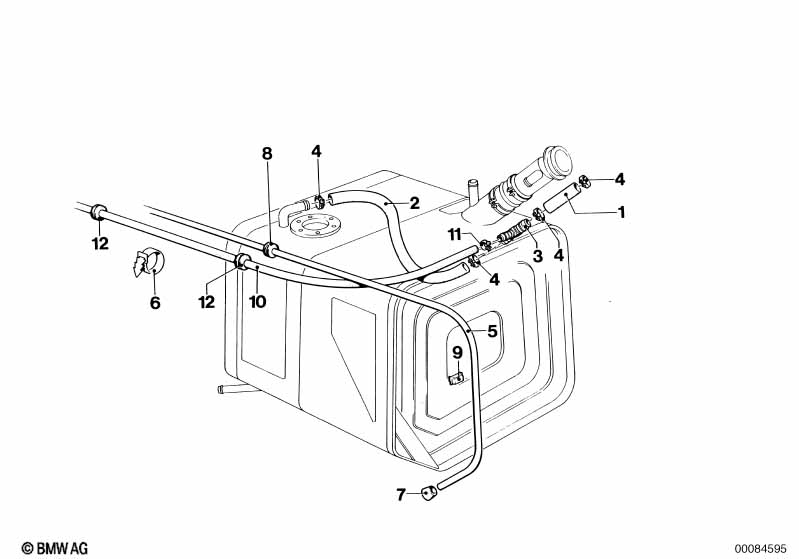

This Fuel lines technical drawing provides a detailed breakdown of the assembly for the M1 E26 M1. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 16122161108 | $1.48 | Shop at ECS Tuning | |||||
| 02 | Hose | 1 | 16121121092 | $9.83 | Shop at ECS Tuning | |||||
| 03 | T-Connector | TRS 12-8-12 | 1 | 16122160713 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L15-19 | 4 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 16122160584 | $6.67 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cable tie | 80MM | 3 | 12521266650 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 07 | Grommet | 1 | 16121101014 | $1.21 | ENDED | Shop at ECS Tuning | ||||
| 08 | Grommet | 2 | 16124780109 | $1.51 | Shop at ECS Tuning | |||||
| 09 | Fixing clamp | 2 | 16122160622 | $1.15 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hose | 1 | 16122161111 | $8.56 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Grommet | 2 | 16112160709 | ENDED | Shop at ECS Tuning |
