Fuel pipe and mounting parts for BMW 3 Series E46 318Ci (2003)

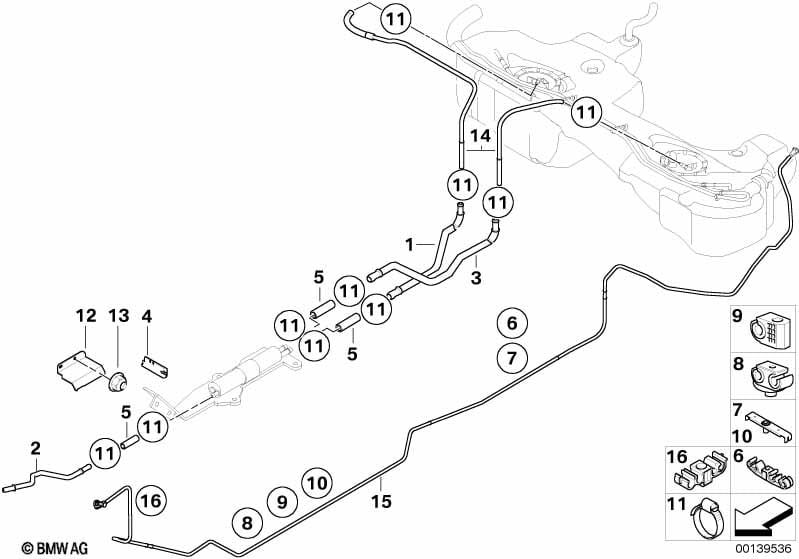

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line rear | 1 | 16126752180 | $11.07 | Shop at ECS Tuning | |||||
| 02 | Fuel pipe | 1 | 06/2002 | 13537548991 | +core | Shop at ECS Tuning | ||||
| 03 | Fuel return line | 1 | 16126752186 | $11.07 | Shop at ECS Tuning | |||||
| 05 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 06 | Pipe clip | 2 | 16126761229 | $1.65 | Shop at ECS Tuning | |||||
| 07 | Bracket | 2 | 16127195327 | $2.12 | Shop at ECS Tuning | |||||
| 08 | Pipe clip | 2 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pipe clip | 9 | 16136753249 | $0.93 | Shop at ECS Tuning | |||||
| 10 | Bracket | 9 | 34306773697 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | L12-15 | 9 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| For vehicles with Poor road package |
S815A=No |
|||||||||
| 12 | Protection plate | 1 | 09/2001 | 16121183775 | Shop at ECS Tuning | |||||
| 13 | Plastic capnut with washer | D=18MM | 2 | 09/2001 | 08/2006 | 51161943122 | $0.39 | Shop at ECS Tuning | ||
| 13 | Plastic nut for coarse threaded pin | M6 | 2 | 09/2001 | 07147336362 | Shop at ECS Tuning | ||||
| 14 | Fuel pipes set | 1 | 16117175998 | $30.47 | Shop at ECS Tuning | |||||
| 15 | Scavenging line front | 1 | 16136753247 | $50.70 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
