Exp.tank/activated Carbon container for BMW 3 Series E46 316ti (2004)

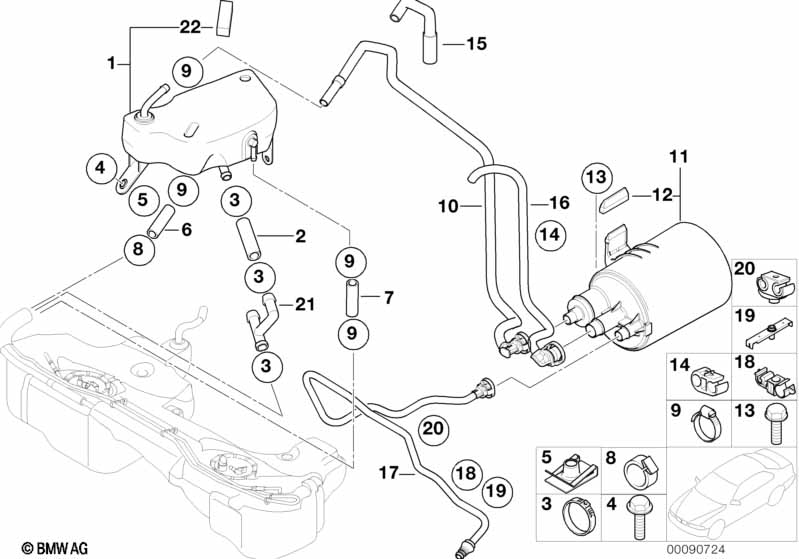

This Exp.tank/activated Carbon container technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 16116753207 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X35 ZNS3 | 2 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 05 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Fuel hose | D=8/6 L=210 | 1 | 16136755898 | Shop at ECS Tuning | |||||
| 07 | Fuel hose | 8X13MMX1000 | X | 13537563456 | $44.77 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | D=10,8-13,3 | 1 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | 12,8-15,3 | 4 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Vent pipe | 1 | 16116753209 | Shop at ECS Tuning | ||||||
| 11 | Activated Charcoal Filter | 1 | 16136753245 | Shop at ECS Tuning | ||||||
| 12 | Cap | 1 | 16131183918 | $3.32 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M6X25-ZNNIV SI | 1 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Clip | 1 | 16136751872 | Shop at ECS Tuning | ||||||
| 16 | Vent pipe | 1 | 16116753210 | Shop at ECS Tuning | ||||||
| 17 | Scavenging line rear | 1 | 16136753246 | Shop at ECS Tuning | ||||||
| 18 | Pipe clip | 2 | 16136753249 | $0.93 | Shop at ECS Tuning | |||||
| 19 | Bracket | 2 | 34306773697 | $0.62 | Shop at ECS Tuning | |||||
| 20 | Pipe clip | D12/D8 | 2 | 16136753248 | $0.98 | Shop at ECS Tuning | ||||
| 22 | Absorbing piece | 100X25X15MM | 1 | 16136755903 | $0.85 | Shop at ECS Tuning |
