Fuel tank/mounting parts for BMW MINI R50 Cooper (2004)

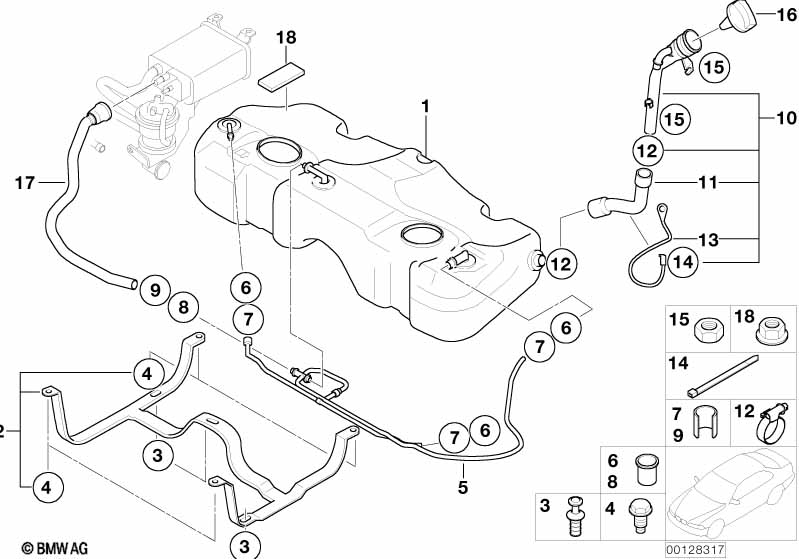

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic fuel tank | 1 | 07/2004 | 16116759960 | $283.84 | Shop at ECS Tuning | ||||
| 02 | Holding strap f tank | 1 | 07/2004 | 16111500998 | $51.93 | Shop at ECS Tuning | ||||
| 03 | Expanding rivet | 3 | 07/2004 | 16136753087 | $0.35 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X36-8.8-ZNS3 | 4 | 07/2004 | 32301094716 | $0.70 | Shop at ECS Tuning | |||
| 05 | breather line | 1 | 07/2004 | 16121500996 | $54.67 | ENDED | Shop at ECS Tuning | |||
| 06 | Sealing grommet | D=11MM | 3 | 07/2004 | 16111513182 | $1.25 | ENDED | Shop at ECS Tuning | ||
| 07 | Safety clip | D=11MM | 3 | 07/2004 | 16121065644 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 08 | Sealing grommet | D=21MM | 2 | 07/2004 | 16111513183 | $1.03 | ENDED | Shop at ECS Tuning | ||
| 09 | Safety clip | D=21MM | 2 | 07/2004 | 16121065643 | $1.43 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | fuel tank filler pipe assy. | 1 | 07/2004 | 16116762045 | $95.52 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 1 | 07/2004 | 16111068193 | $24.60 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L32-38 | 2 | 07/2004 | 07129952115 | $1.27 | Shop at ECS Tuning | |||
| 13 | Ground cable | 1 | 07/2004 | 16116760043 | $2.97 | Shop at ECS Tuning | ||||
| 14 | Cable tie | L=292MM/B=4,8MM | 1 | 07/2004 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 15 | Hex nut | BM6-8-ZNS3 | 2 | 07/2004 | 07129904870 | $0.36 | Shop at ECS Tuning | |||
| 16 | Filler cap | 1 | 07/2004 | 16117222391 | +core | Shop at ECS Tuning | ||||
| 17 | Vent pipe | 1 | 07/2004 | 16121515210 | $50.70 | Shop at ECS Tuning | ||||
| 18 | Base | 35X45X6 MM | X | 07/2004 | 16111182585 | $1.08 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
