Activated Charcoal Filter/mounting parts for BMW MINI R50 Cooper (2004)

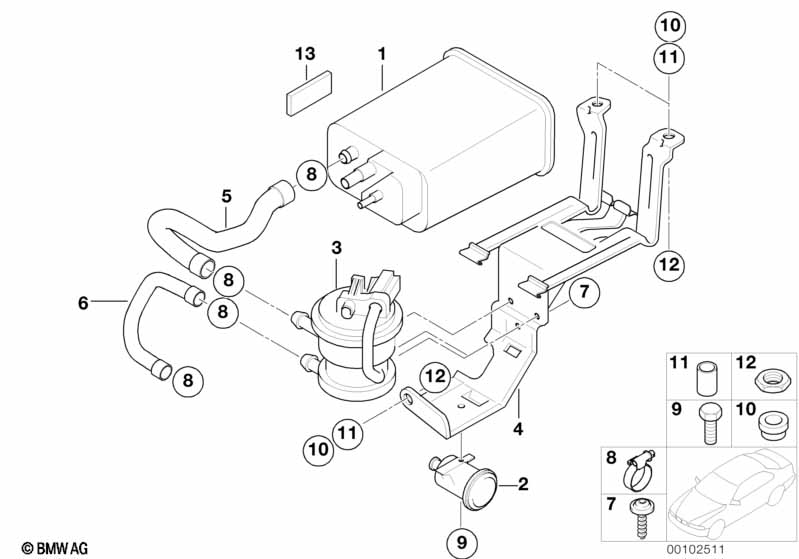

This Activated Charcoal Filter/mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 07/2004 | 16136801156 | $202.11 | +core | Shop at ECS Tuning | |||
| 02 | Dust filter | 1 | 07/2004 | 16136801157 | $21.20 | Shop at ECS Tuning | ||||
| 03 | Leak diagnosis pump | 1 | 07/2004 | 16136801158 | $112.36 | Shop at ECS Tuning | ||||
| 04 | Bracket activated Carbon container | 1 | 07/2004 | 16131492900 | $52.53 | ENDED | Shop at ECS Tuning | |||
| 05 | Connecting line | 1 | 07/2004 | 16131495968 | $19.13 | Shop at ECS Tuning | ||||
| 06 | Connecting line | 1 | 07/2004 | 16131492901 | $19.13 | Shop at ECS Tuning | ||||
| 07 | Screw | TS 5X16 | 3 | 07/2004 | 16131184527 | $0.58 | Shop at ECS Tuning | |||
| 08 | Hose clamp | L18-24 | 4 | 07/2004 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 09 | Hexagon bolt black | M5X12-Z4-8.8 | 1 | 07/2004 | 17111464440 | $1.20 | Shop at ECS Tuning | |||
| 10 | Fastening elements | 3 | 07/2004 | 16130601681 | ENDED | Shop at ECS Tuning | ||||
| 11 | Spacer bush | 3 | 07/2004 | 16130601682 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex nut | BM6-8-ZNS3 | 3 | 07/2004 | 07129904870 | $0.36 | Shop at ECS Tuning | |||
| 13 | Base | 100X50X6MM | 2 | 07/2004 | 16116766774 | $1.08 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
