Fuel pipe and scavenging line for BMW 5 Series E60 545i (2005)

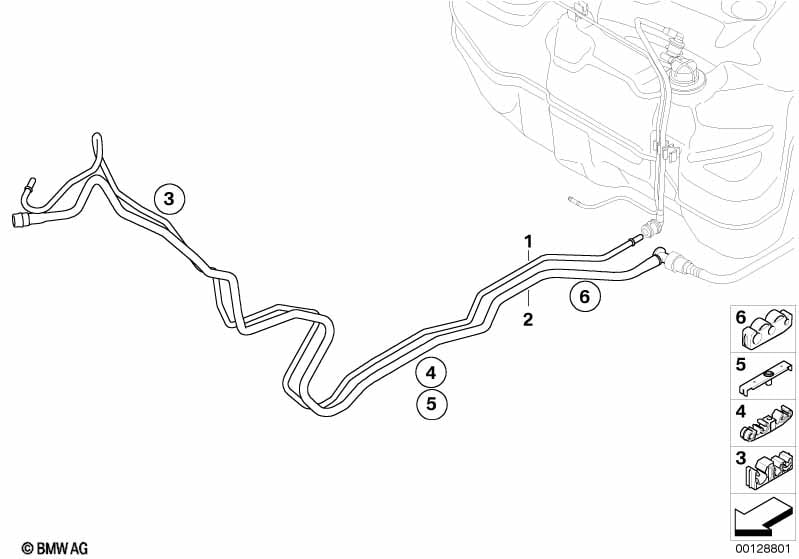

This Fuel pipe and scavenging line technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 545i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Feed line | 1 | 16126760769 | $30.47 | Shop at ECS Tuning | |||||
| 02 | Scavenging line front | 1 | 16136760770 | $50.70 | Shop at ECS Tuning | |||||
| 03 | Triple clip | 1 | 16126755011 | $1.28 | Shop at ECS Tuning | |||||
| 04 | Pipe clip | 7 | 03/2008 | 16126760471 | $1.53 | Shop at ECS Tuning | ||||
| 05 | Bracket | 6 | 03/2008 | 16126760758 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Vibration damper | 1 | 16126762681 | $3.60 | Shop at ECS Tuning |
