Fuel filter /Fuel level sensor left for BMW 5 Series E60 525xi (2007)

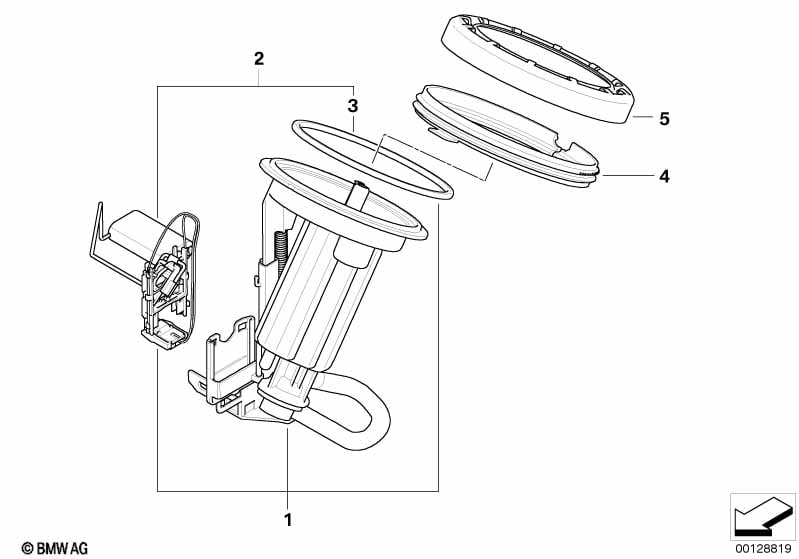

This Fuel filter /Fuel level sensor left technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| without level indicator! | ||||||||||
| 01 | Fuel filter with pressure regulator | 5 BAR | 1 | 16117373514 | Shop at ECS Tuning | |||||
| 02 | Left fuel level sensor | 1 | 16146765825 | $60.82 | Shop at ECS Tuning | |||||
| 03 | Rubber seal | B10 | 1 | 16146750467 | $6.70 | Shop at ECS Tuning | ||||
| 04 | Adapter for fuel tank | 1 | 16146750466 | $3.60 | Shop at ECS Tuning | |||||
| 05 | Screw cap | 1 | 16116762417 | $4.38 | Shop at ECS Tuning | |||||
