Activated Charcoal Filter/FUEL VENTILAT for BMW 5 Series E60 530i (2005)

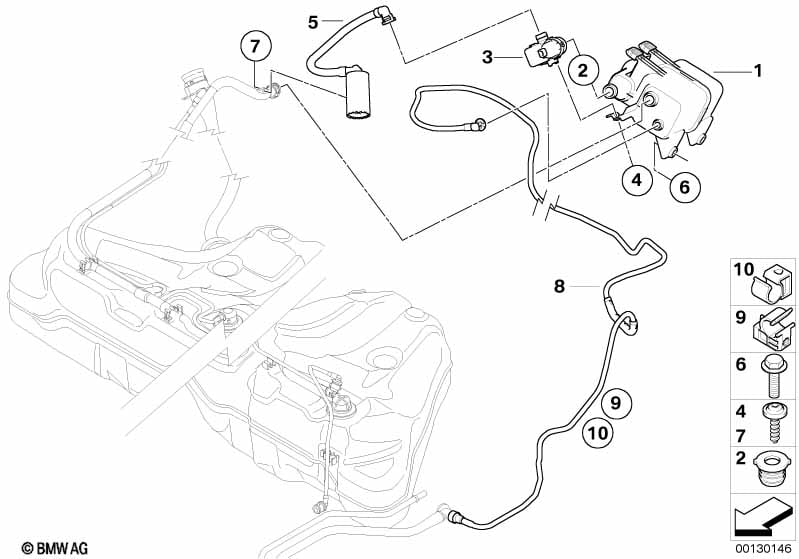

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 16137162350 | $131.82 | Shop at ECS Tuning | |||||
| 02 | Sealing grommet | 1 | 16131184308 | $2.45 | Shop at ECS Tuning | |||||
| 03 | Leak diagnosis pump | 1 | 16137193479 | $112.36 | Shop at ECS Tuning | |||||
| 05 | Dust filter | 1 | 16136760803 | $42.42 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 07 | Screw for thermoplastic plastics | TS5X12-Z2-ZNS3 | 1 | 07129906168 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Scavenging line rear | 1 | 16136760771 | $70.95 | ENDED | Shop at ECS Tuning | ||||
| 09 | Pipe clip | D=12MM | 7 | 16136760583 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Pipe clip | D=12MM | 1 | 16126762696 | $1.05 | Shop at ECS Tuning |
