Fuel tank/fuel feed for BMW 5 Series E28 520i (1987)

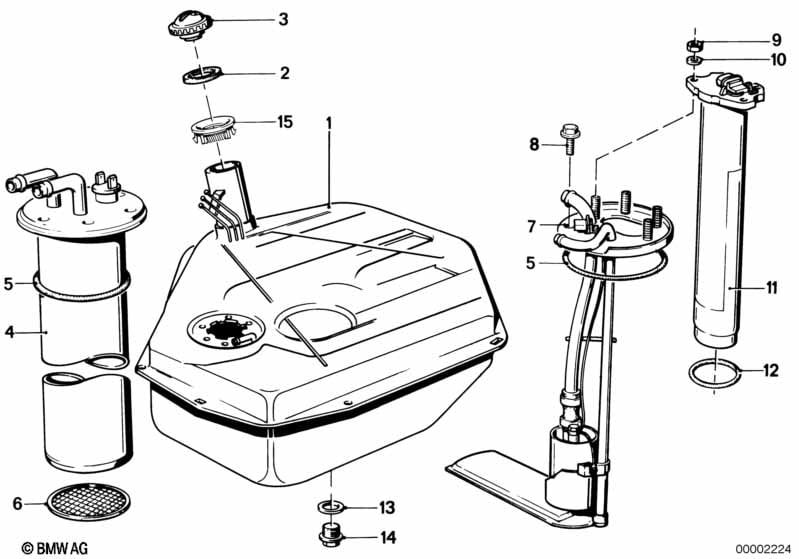

This Fuel tank/fuel feed technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 70L | 1 | 16111178881 | $334.33 | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 01 | Metal fuel tank | 63L | 1 | 16111177829 | $334.80 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber seal | 1 | 16111179680 | $6.70 | Shop at ECS Tuning | |||||
| 03 | Filler cap without lock | 1 | 16116750564 | $26.83 | Shop at ECS Tuning | |||||
| 03 | Lockable filler cap | CODE | 1 | 16121178534 | Shop at ECS Tuning | |||||
| 04 | Sending unit assy metal tank | 1 | 16121153507 | $138.16 | Shop at ECS Tuning | |||||
| 05 | O-ring | D=58,8X4,2 | 1 | 16111744369 | $1.68 | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 05 | Gasket | 1 | 16121116966 | $3.64 | Shop at ECS Tuning | |||||
| 07 | Suction device with pre-supply pump | 1 | 16141179424 | $295.22 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Saudi Arabia version |
=Yes |
|||||||||
| 07 | Suction device with pre-supply pump | 1 | 16141179425 | $230.67 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M5X14-8.8-ZNNIV | 6 | 07119904269 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Washer | 10X5,3X1-200 HV | 4 | 07119904206 | Shop at ECS Tuning | |||||
| 10 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Sending unit assy metal tank | 1 | 16121153050 | $138.71 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | 1 | 16121150391 | $4.18 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Screw plug | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 15 | Leadfree fuel insert | 1 | 16111180157 | $5.12 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
