Fuel tank/attaching parts for BMW 5 Series E28 528e (1987)

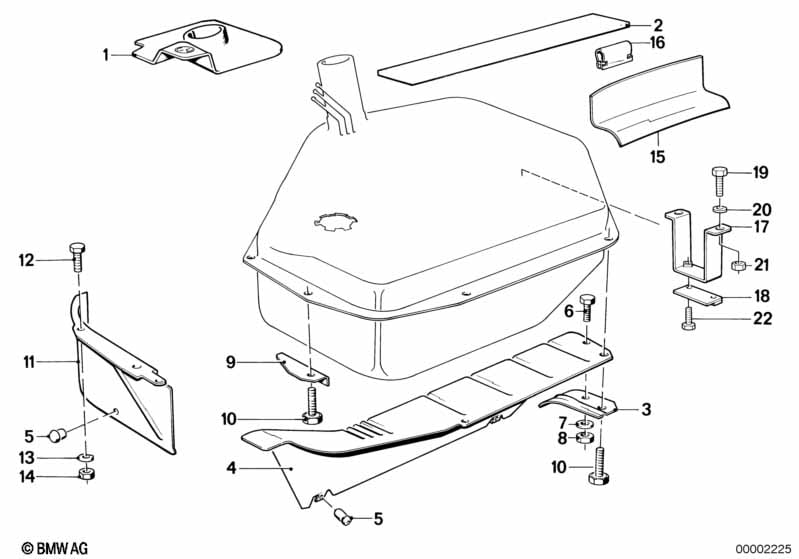

This Fuel tank/attaching parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber seal | 1 | 16111119235 | $12.82 | Shop at ECS Tuning | |||||
| 02 | Base | 220MM | 3 | 16111108667 | $3.59 | Shop at ECS Tuning | ||||
| 03 | Bow | 1 | 16111176379 | $7.04 | ENDED | Shop at ECS Tuning | ||||
| 04 | Protection plate | 1 | 16111177253 | $27.11 | Shop at ECS Tuning | |||||
| 05 | Plug | 2 | 32212675171 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M10X30-Z2 | 3 | 07119913941 | $1.10 | Shop at ECS Tuning | ||||
| 18 | Plate | 1 | 09/1985 | 16111178454 | $0.39 | Shop at ECS Tuning | ||||
| 22 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
