Fuel tank/mounting parts for BMW 3 Series E90 LCI 320d (2010)

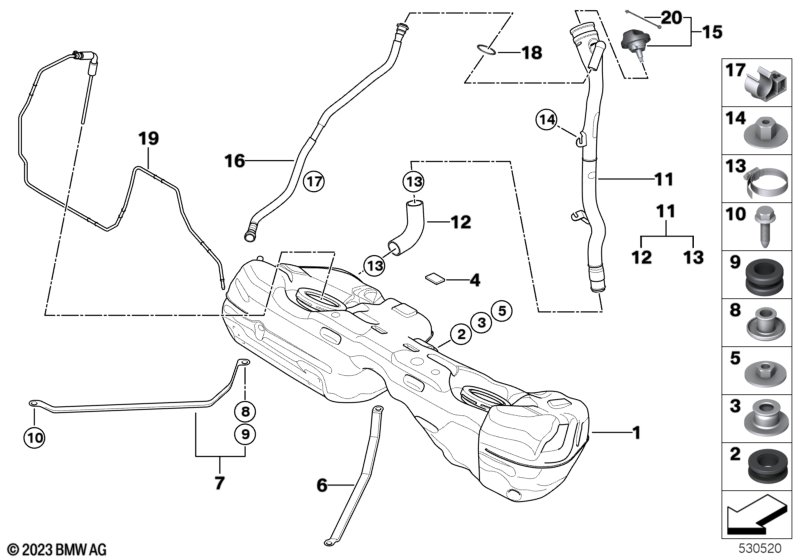

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic fuel tank | 1 | 16117283802 | Shop at ECS Tuning | ||||||
| 02 | Rubber grommet | 1 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 03 | Spacer sleeve | 1 | 16117248837 | Shop at ECS Tuning | ||||||
| 04 | Base | 43X35X8 MM | 7 | 07147273549 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNS3 | 1 | 07146760121 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M8-8.8-ZNS3 | 1 | 07147204294 | Shop at ECS Tuning | |||||
| 06 | Tension strap left | 1 | 16117195169 | $21.02 | Shop at ECS Tuning | |||||
| 07 | Tension strap right | 1 | 16117195175 | $21.02 | Shop at ECS Tuning | |||||
| 08 | Spacer sleeve | 4 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| 09 | Rubber grommet | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M8X30-10.9-ZNS3 | 4 | 31106760122 | $0.80 | Shop at ECS Tuning | ||||
| 11 | Plastic filler pipe | 1 | 04/2009 | 16117203753 | $137.92 | Shop at ECS Tuning | ||||
| 12 | Filler pipe | 1 | 16117176673 | $40.50 | Shop at ECS Tuning | |||||
| 15 | Filler cap | 1 | 16117193381 | $17.88 | +core | Shop at ECS Tuning | ||||
| 16 | Vent pipe | 1 | 16126765748 | $50.70 | Shop at ECS Tuning | |||||
| 17 | Cable clip | D18 | 1 | 16131183931 | $1.08 | Shop at ECS Tuning | ||||
| 18 | O-ring | 18X2,5MM | 1 | 16126766044 | $0.63 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 19 | Auxiliary heating fuel pipe | 1 | 09/2006 | 16127194204 | Shop at ECS Tuning | |||||
| 20 | Holding strap | 1 | 16116754637 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Filler cap | X | 16117193372 | Shop at ECS Tuning | ||||||
| -- | Filler cap | X | 16117193381 | $17.88 | +core | Shop at ECS Tuning | ||||
| -- | Filler cap | X | 16117238235 | $18.43 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d Fuel tank/mounting parts?
- This technical diagram illustrates the Fuel tank/mounting parts within the Fuel Supply group for the 3 Series E90 LCI 320d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Plastic fuel tank (Part #16117283802).
- Which models use the hardware listed in this Fuel tank/mounting parts?
- The hardware and components featured in the Fuel tank/mounting parts are specific to the 3 Series E90 LCI 320d produced during 2010. These technical specifications ensure that parts like the Plastic fuel tank (16117283802) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank/mounting parts assembly?
- Each item in the Fuel tank/mounting parts corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the Plastic fuel tank by locating its position on the schematic, which then links to the official BMW part number 16117283802 for the Fuel Supply section.
