Fuel pipes / Mounting parts for BMW 3 Series E91 320i (2008)

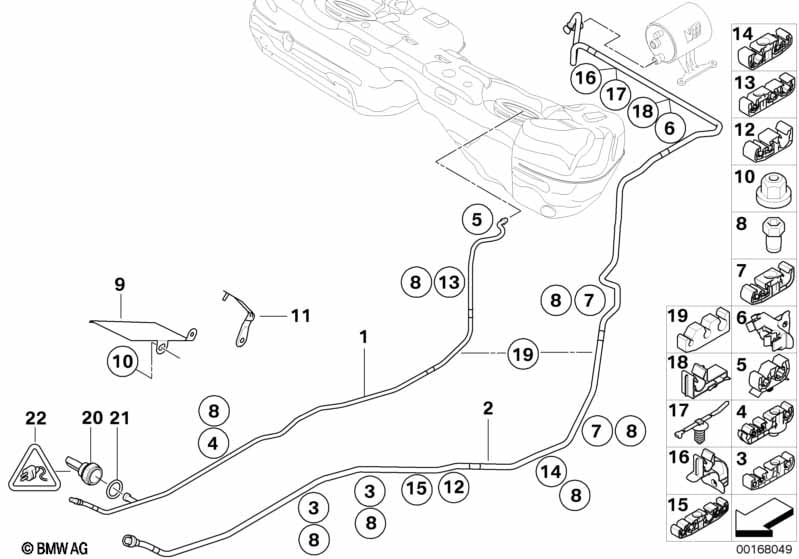

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line | 1 | 16127172162 | $25.35 | Shop at ECS Tuning | |||||
| For vehicles with Equipment for leaded fuel |
S199A=No |
|||||||||
| 02 | Scavenge air line | 1 | 16136765752 | $70.95 | Shop at ECS Tuning | |||||
| 03 | Pipe clip | D8/D12/2XD4,75 | 4 | 16126763897 | $2.05 | Shop at ECS Tuning | ||||
| 05 | Pipe clip | 1 | 16126765062 | $2.05 | Shop at ECS Tuning | |||||
| 06 | Angle clip | D=12MM | 1 | 16137180437 | $1.07 | +core | Shop at ECS Tuning | |||
| 07 | Pipe clip | D12/2XD4,75 | 2 | 16126766234 | $2.05 | Shop at ECS Tuning | ||||
| For vehicles with Equipment for leaded fuel |
S199A=Yes |
|||||||||
| 07 | Pipe clip | D12/2XD4,75 | 3 | 16126766234 | $2.05 | Shop at ECS Tuning | ||||
| 08 | Bolting pin, short | 7 | 16126766237 | $0.35 | Shop at ECS Tuning | |||||
| 09 | Protection plate | 1 | 06/2005 | 16127174891 | $9.29 | Shop at ECS Tuning | ||||
| 10 | Plastic capnut with washer | D=18MM | 1 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 10 | Plastic nut for coarse threaded pin | M6 | 1 | 07147336362 | Shop at ECS Tuning | |||||
| 10 | Body nut | D=18MM, ZNS-3 | 3 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 11 | Holder | 1 | 02/2006 | 16127181073 | $7.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe clip | D8 | 1 | 02/2006 | 16126766396 | $1.05 | Shop at ECS Tuning | |||
| 12 | Spacer holder | D12/5,1/5,1 | 1 | 16126768380 | $0.93 | Shop at ECS Tuning | ||||
| 13 | Clip | D8/12/5 | 1 | 16126766921 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Pipe clip | D12/D5,1/D5,1 | 1 | 16127163595 | $2.05 | Shop at ECS Tuning | ||||
| 18 | Clip | D=12MM | 2 | 02/2006 | 16137180438 | $1.62 | Shop at ECS Tuning | |||
| Suitable only for vehicles without radius rod |
||||||||||
| 18 | Clip | D=12MM | 1 | 16127206387 | $1.62 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
