Activated Charcoal Filter/FUEL VENTILAT for BMW 3 Series E90 325i (2008)

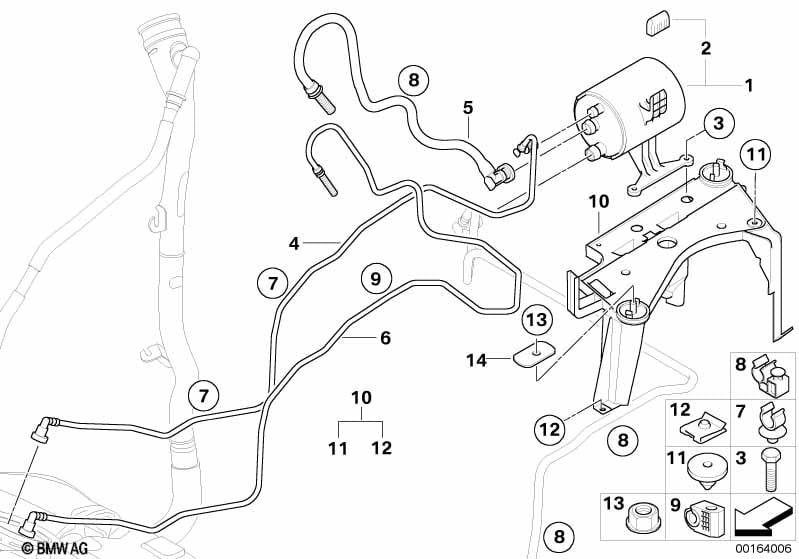

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 16136764046 | $87.89 | Shop at ECS Tuning | |||||
| 02 | Cap | 1 | 16131183918 | $3.32 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 04 | breather line | 1 | 16126765750 | $24.97 | Shop at ECS Tuning | |||||
| 05 | Vent pipe | 1 | 16136765754 | $30.47 | Shop at ECS Tuning | |||||
| 07 | Pipe clip | D8 | 3 | 16126766396 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Pipe clip | D14 | 3 | 16126766397 | $1.05 | Shop at ECS Tuning |
