Fuel pipes / Mounting parts for BMW 3 Series E90 320d (2007)

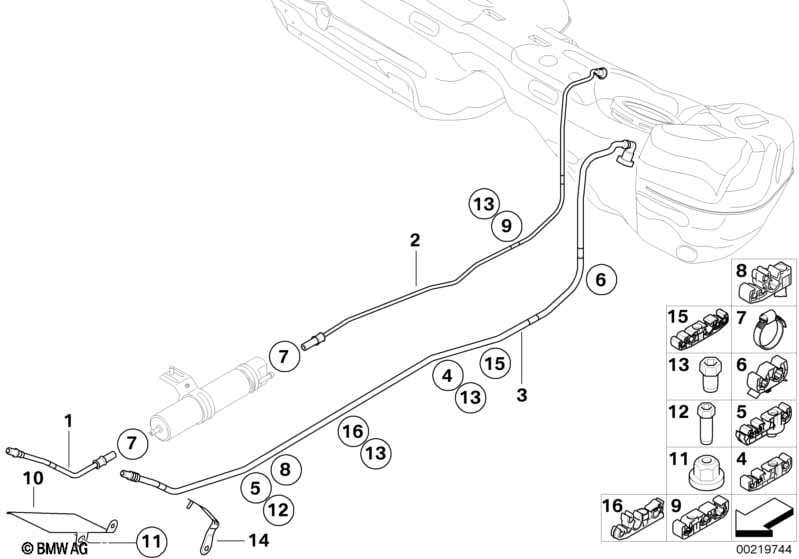

This Fuel pipes / Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line front | 1 | 16127176663 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line rear | 1 | 16126765745 | $25.35 | Shop at ECS Tuning | |||||
| 03 | Fuel return line | 1 | 16126765747 | Shop at ECS Tuning | ||||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 04 | Clip | D8/12/2X5,1/5 | 3 | 09/2005 | 16127169276 | $3.23 | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating |
S536A=No |
|||||||||
| 04 | Pipe clip | D8/D12/2XD4,75 | 3 | 09/2005 | 16126763897 | $2.05 | Shop at ECS Tuning | |||
| 06 | Pipe clip | 1 | 16126765062 | $2.05 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 12,8-15,3 | 2 | 16121180240 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Pipe clip | D12/2XD4,75 | 1 | 16126766232 | $2.55 | Shop at ECS Tuning | ||||
| 09 | Clip | D8/12/5 | 1 | 16126766921 | $1.62 | Shop at ECS Tuning | ||||
| 10 | Protection plate | 1 | 16127174891 | $9.29 | Shop at ECS Tuning | |||||
| 11 | Plastic capnut with washer | D=18MM | 4 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 11 | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| 11 | Plastic capnut with washer | D=18MM | 4 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 11 | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| 11 | Body nut | D=18MM, ZNS-3 | 4 | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 13 | Bolting pin, short | 4 | 06/2005 | 16126766237 | $0.35 | Shop at ECS Tuning | ||||
| 14 | Holder | 1 | 02/2006 | 16127181073 | $7.47 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pipe clip | D8 | 1 | 02/2006 | 16126766396 | $1.05 | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 15 | Clip | D8/12/2X5,1/5 | 1 | 16126768492 | $3.23 | Shop at ECS Tuning | ||||
