Fuel filter/pump/fuel level sensor for BMW 3 Series E90 325d (2008)

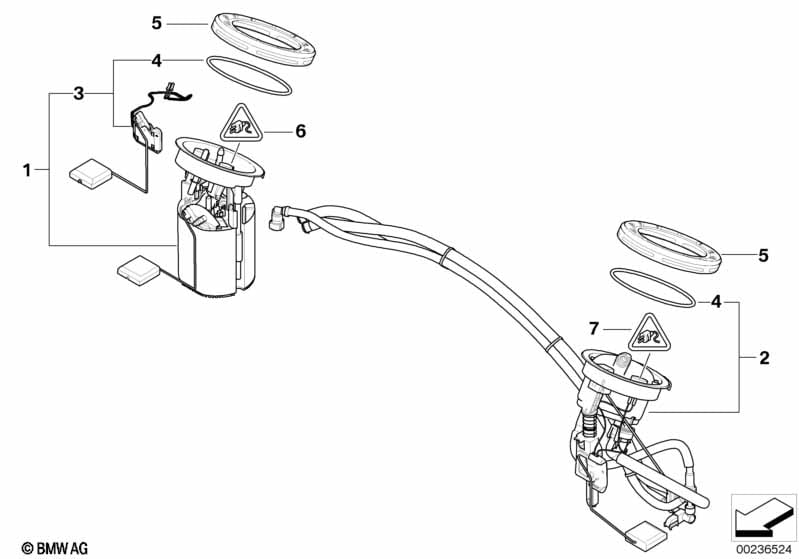

This Fuel filter/pump/fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit, fuel pump/fuel level sensor | 1 | 09/2007 | 16117190946 | $297.84 | Shop at ECS Tuning | ||||
| 02 | Repair kit conveyor unit | 1 | 09/2007 | 16117190947 | $99.29 | Shop at ECS Tuning | ||||
| 03 | Right fuel level sensor | 1 | 16117159162 | $86.75 | Shop at ECS Tuning | |||||
| 04 | Rubber seal | 2 | 16116763860 | $10.53 | Shop at ECS Tuning | |||||
| 05 | Screw cap | 2 | 16116763852 | $5.33 | Shop at ECS Tuning |
