Activated Charcoal Filter/mounting parts for BMW 3 Series E92 LCI 335i (2013)

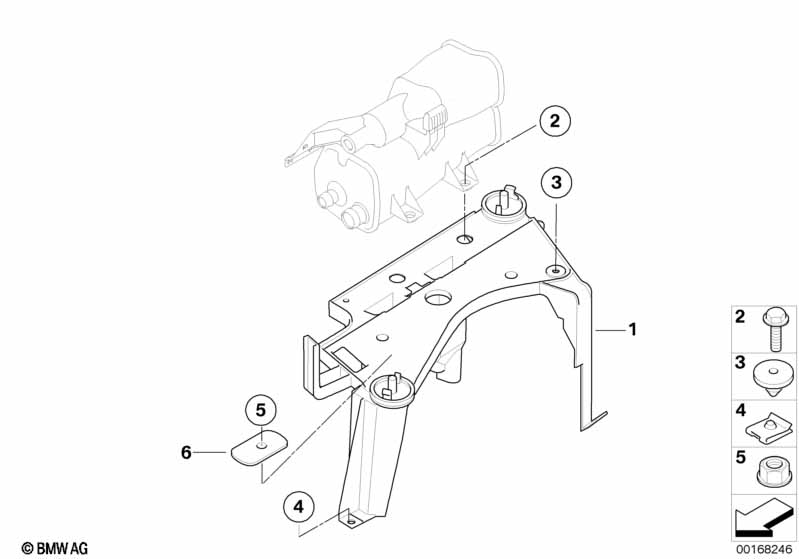

This Activated Charcoal Filter/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Holder | 1 | 16136768644 | $53.52 | Shop at ECS Tuning | |||||
| 02 | Hex bolt with washer | M6X23 | 2 | 07119905591 | $0.29 | Shop at ECS Tuning | ||||
| 03 | Clutch pedal stop buffer | 2 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 04 | Body nut | ST6,3-2-ZNS3 | 3 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 04 | C-clip nut, self-locking | TS5 | 3 | 07147330004 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 06 | Washer | 2 | 16137165512 | $1.33 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E92 LCI 335i Activated Charcoal Filter/mounting parts?
- This technical diagram illustrates the Activated Charcoal Filter/mounting parts within the Fuel Supply group for the 3 Series E92 LCI 335i produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Holder (Part #16136768644).
- Which models use the hardware listed in this Activated Charcoal Filter/mounting parts?
- The hardware and components featured in the Activated Charcoal Filter/mounting parts are specific to the 3 Series E92 LCI 335i produced during 2013. These technical specifications ensure that parts like the Holder (16136768644) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Activated Charcoal Filter/mounting parts assembly?
- Each item in the Activated Charcoal Filter/mounting parts corresponds to the numbered list below the illustration. For the 3 Series E92 LCI 335i, you can identify the Holder by locating its position on the schematic, which then links to the official BMW part number 16136768644 for the Fuel Supply section.
