Fuel tank/mounting parts for BMW 7 Series F02 730Li (2012)

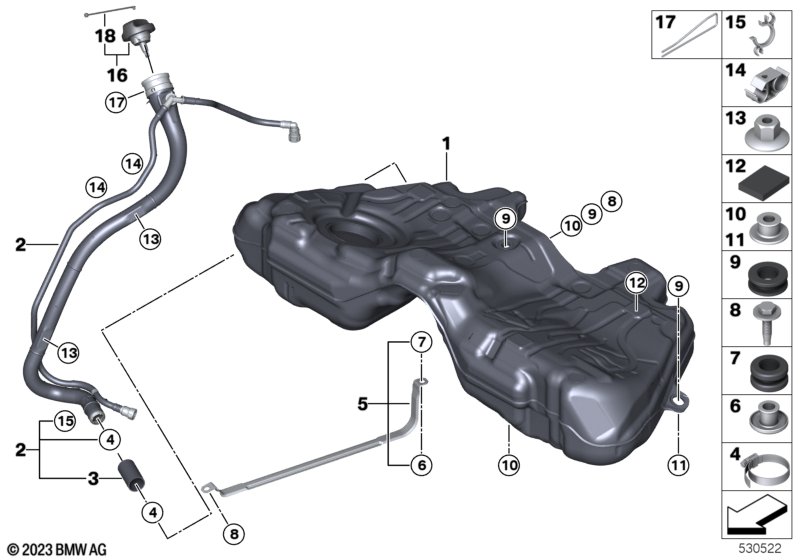

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic fuel tank | 1 | 16117267498 | Shop at ECS Tuning | ||||||
| For vehicles with Outside fuel filter |
S1AKA=Yes |
|||||||||
| 01 | Plastic fuel tank | 1 | 16117267506 | Shop at ECS Tuning | ||||||
| 02 | Plastic filler pipe | 1 | 16117185143 | Shop at ECS Tuning | ||||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 02 | Plastic filler pipe | 1 | 16117185144 | $142.03 | Shop at ECS Tuning | |||||
| For vehicles with Increased size fuel filler pipe or Equipment for leaded fuel |
S1AFA=Yes S199A=Yes |
|||||||||
| 02 | Plastic filler pipe | 1 | 16117213443 | Shop at ECS Tuning | ||||||
| 03 | Filler pipe | 1 | 16117046329 | $25.73 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Tension strap | 2 | 16117184963 | $26.17 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | 4 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X30-PF-U2-8.8 | 7 | 07119906672 | Shop at ECS Tuning | |||||
| 09 | Rubber grommet | 3 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 10 | Spacer sleeve | 1 | 16117248837 | Shop at ECS Tuning | ||||||
| 11 | Spacer sleeve | 2 | 16117201486 | $5.01 | Shop at ECS Tuning | |||||
| 12 | Base | 43X35X8 MM | 6 | 11/2011 | 07147273549 | Shop at ECS Tuning | ||||
| 12 | Base | 45X35 MM | 1 | 11/2011 | 07147240137 | Shop at ECS Tuning | ||||
| 13 | Plastic nut for coarse threaded pin | 2 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 14 | Wire clip, dual | 2 | 16127199666 | Shop at ECS Tuning | ||||||
| 15 | Triple clip | 1 | 16117003188 | Shop at ECS Tuning | ||||||
| 16 | Filler cap | 1 | 16117193372 | Shop at ECS Tuning | ||||||
| 18 | Holding strap | 1 | 16116754637 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Filler cap | X | 16117193372 | Shop at ECS Tuning | ||||||
| -- | Filler cap | X | 16117193381 | $17.88 | +core | Shop at ECS Tuning | ||||
| -- | Filler cap | X | 16117238235 | $18.43 | Shop at ECS Tuning | |||||
