Fuel pump and fuel level sensor for BMW 5 Series F10 LCI 530d (2013)
This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Closure ring | 1 | 16117188565 | $3.08 | Shop at ECS Tuning | |||||
| 02 | O-ring | 1 | 16117188567 | $5.34 | Shop at ECS Tuning | |||||
| 03 | Supply module | 1 | 16117260648 | Shop at ECS Tuning | ||||||

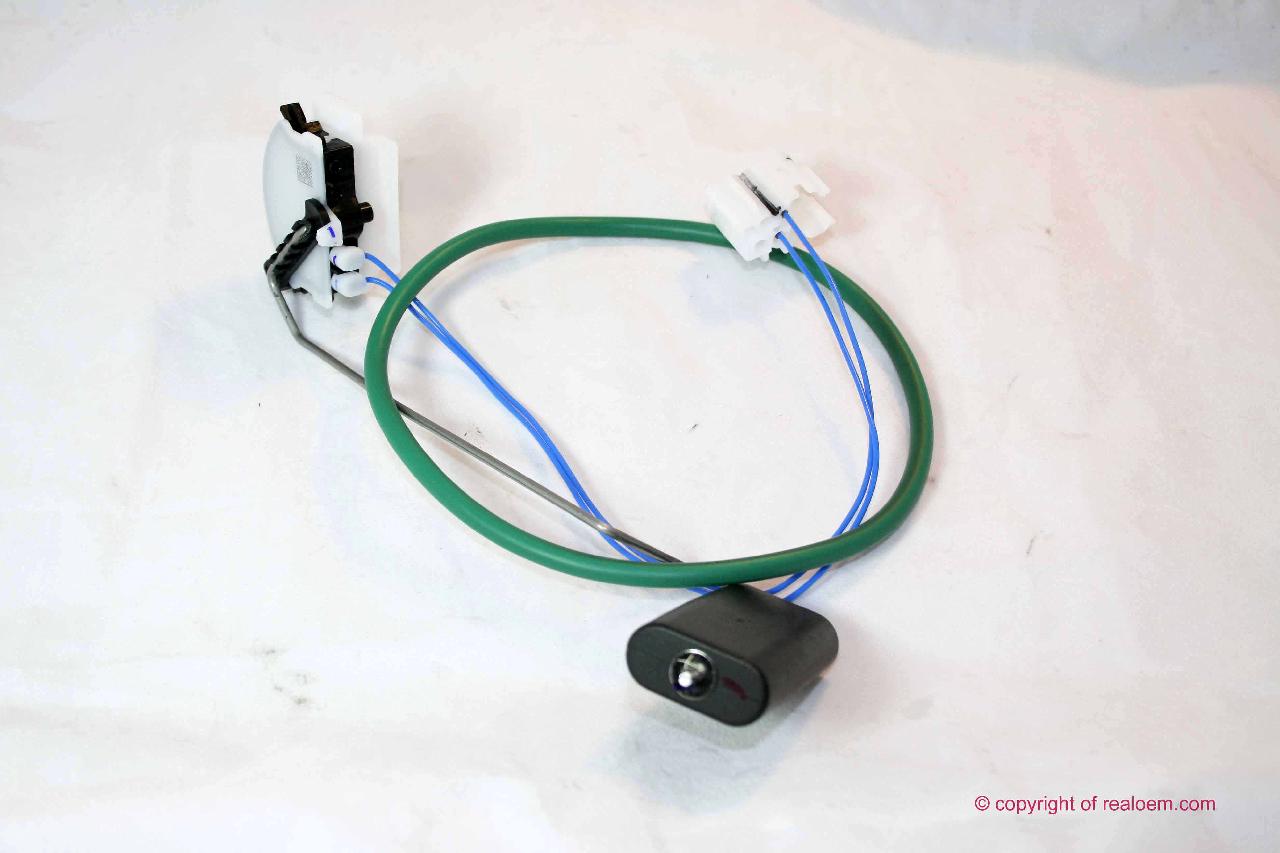

| 04 | Fuel level sensor | 1 | 16117297340 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 LCI 530d Fuel pump and fuel level sensor?
- This technical diagram illustrates the Fuel pump and fuel level sensor within the Fuel Supply group for the 5 Series F10 LCI 530d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Closure ring (Part #16117188565).
- Which models use the hardware listed in this Fuel pump and fuel level sensor?
- The hardware and components featured in the Fuel pump and fuel level sensor are specific to the 5 Series F10 LCI 530d produced during 2013. These technical specifications ensure that parts like the Closure ring (16117188565) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel pump and fuel level sensor assembly?
- Each item in the Fuel pump and fuel level sensor corresponds to the numbered list below the illustration. For the 5 Series F10 LCI 530d, you can identify the Closure ring by locating its position on the schematic, which then links to the official BMW part number 16117188565 for the Fuel Supply section.
