Fuel supply/single filter for BMW 7 Series E32 730i (1994)

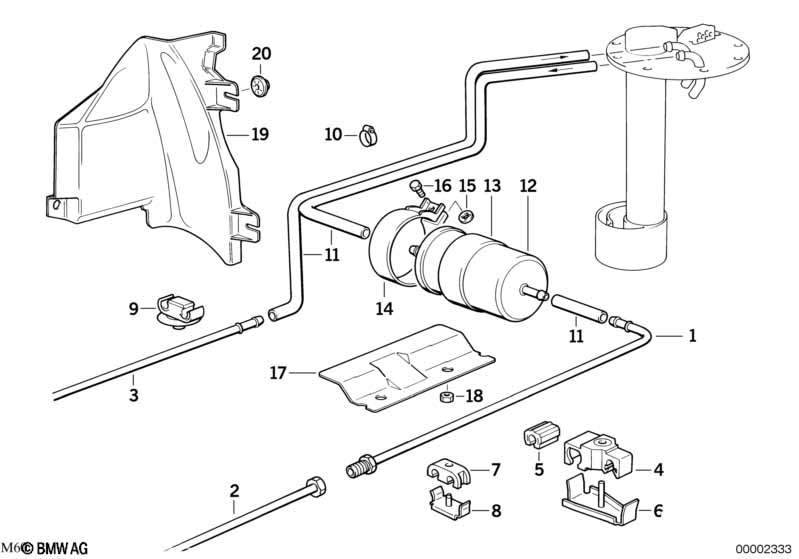

This Fuel supply/single filter technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line | 1 | 16121182169 | $51.08 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fuel supply line | 1 | 16121182134 | $107.30 | Shop at ECS Tuning | |||||
| 03 | Fuel return line | 1 | 16121182416 | $24.97 | Shop at ECS Tuning | |||||
| 04 | Fuel pipe bracket | 3 | 16121181518 | $1.62 | Shop at ECS Tuning | |||||
| 05 | Rubber buffer | 3 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 06 | Fuel pipe bracket | 3 | 16121181519 | $2.17 | Shop at ECS Tuning | |||||
| 07 | Clamping | X | 16121107928 | $4.00 | Shop at ECS Tuning | |||||
| 08 | Holder | X | 16121155060 | $1.08 | Shop at ECS Tuning | |||||
| 09 | Pipe clip | 2 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L12-15 | 6 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Fuel hose | 8X13MM | X | 16121180409 | $20.43 | Shop at ECS Tuning | ||||
| 12 | Fuel filter | 1 | 13321268231 | Shop at ECS Tuning | ||||||
| 13 | Damper ring | D=80MM | 1 | 16121178643 | $3.68 | Shop at ECS Tuning | ||||
| 14 | Bracket fuel strainer | D=80MM | 1 | 16121178632 | $10.70 | Shop at ECS Tuning | ||||
| 15 | Circlip | M6 | 1 | 54318246804 | $5.46 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M6X20-U2-8.8 | 1 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 17 | Stone chip left | ALU | 1 | 16121181349 | $10.62 | Shop at ECS Tuning | ||||
| 18 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 19 | Stone chip left | 1 | 16121181935 | $69.50 | ENDED | Shop at ECS Tuning | ||||
| 19 | Stone chip right | 1 | 16121181936 | $69.50 | ENDED | Shop at ECS Tuning | ||||
| 20 | Plastic nut | 6 | 51711958025 | $0.26 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
