Sending unit assy metal tank for BMW 7 Series E32 735iL (1992)

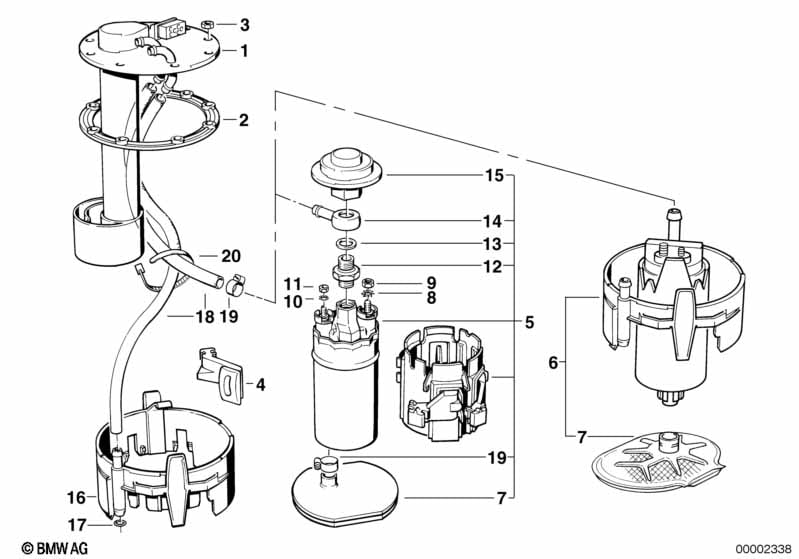

This Sending unit assy metal tank technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sending unit assy metal tank | 81L-90L/275MM | 1 | 16141180889 | $187.28 | Shop at ECS Tuning | ||||
| 01 | Sending unit assy metal tank | 91L-102L/295MM | 1 | 16141180891 | $194.57 | ENDED | Shop at ECS Tuning | |||
| 02 | Rubber seal | 1 | 16141178783 | $6.70 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M6-8-ZNNIV SI | 8 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 4 | 16141178877 | $2.03 | Shop at ECS Tuning | |||||
| 05 | Fuel pump | 1 | 16141181354 | $381.39 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Fuel pump | 1 | 16141181354 | $381.39 | Shop at ECS Tuning | |||||
| 07 | Strainer | 1 | 16141179500 | $29.53 | Shop at ECS Tuning | |||||
| 08 | Tooth washer | A5,1 | 1 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M5-8-ZNNIV SI | 1 | 07119905729 | Shop at ECS Tuning | |||||
| 10 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M4-A2-70 | 1 | 07119922854 | Shop at ECS Tuning | |||||
| 12 | non-return valve | 1 | 16141179282 | $32.10 | ENDED | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A12X15-CU | 2 | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Connector | D=12MM | 1 | 13311263262 | $5.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 14 | Connector | D=12MM | 1 | 13311263262 | $5.23 | ENDED | Shop at ECS Tuning | |||
| 15 | Absorber | 1 | 16141179281 | $87.80 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 15 | Absorber | 1 | 16141179281 | $87.80 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | SERVICE | 1 | 16149068450 | $1.10 | Shop at ECS Tuning | ||||
| 16 | Braket fuel pump | 1 | 16141179119 | $25.83 | Shop at ECS Tuning | |||||
| 17 | O-ring | 7X1,5 | 1 | 16141179153 | $0.89 | Shop at ECS Tuning | ||||
| 18 | Fuel hose | 8X13 | X | 16121180040 | $25.73 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L12-15 | 5 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 20 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
