Fuel pipe and mounting parts for BMW 1 Series F21 118i (2015)

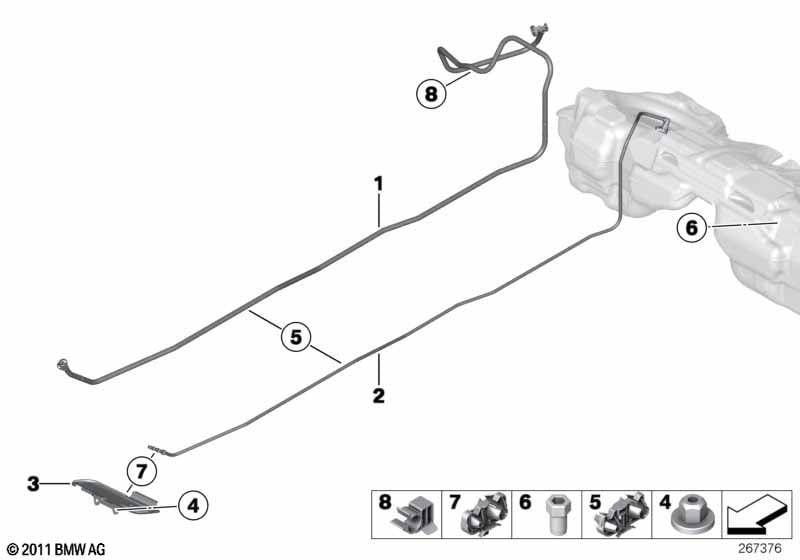

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 1 Series F21 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Scavenge air line | 1 | 16127244738 | Shop at ECS Tuning | ||||||
| 02 | Feed line | 1 | 16127244772 | Shop at ECS Tuning | ||||||
| 03 | Guard plate, fuel lines | 1 | 16127244172 | Shop at ECS Tuning | ||||||
| 04 | Plastic nut for coarse threaded pin | M6 | 2 | 05/2014 | 07147336362 | Shop at ECS Tuning | ||||
| 05 | Wire clip, dual | D8,12 | 4 | 16127258752 | Shop at ECS Tuning | |||||
| 06 | Bolting pin, short | 2 | 16126766237 | $0.35 | Shop at ECS Tuning | |||||
| 07 | Wire clip, dual | 2 | 16127277360 | Shop at ECS Tuning | ||||||
| 08 | Wire clip, single | D12-14 | 1 | 16127278367 | Shop at ECS Tuning |
