Fuel tank/mounting parts for BMW MINI F56 JCW (2021)

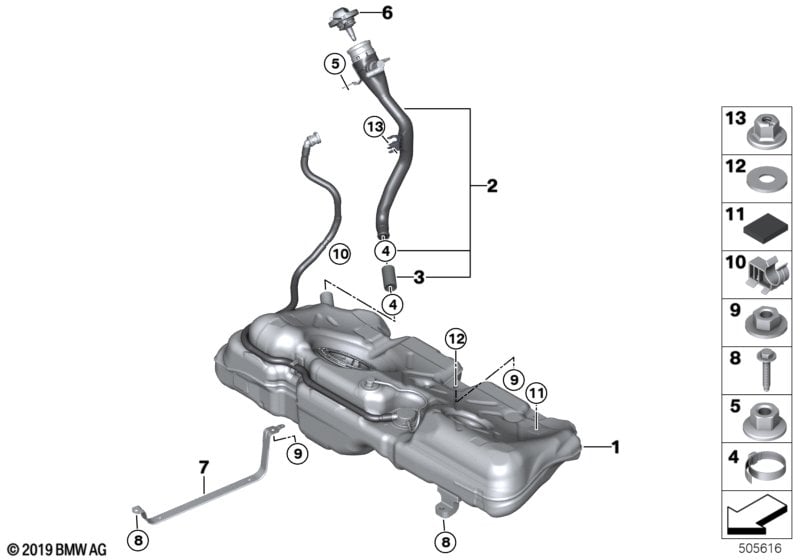

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI F56 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Higher-capacity fuel tank |
S1AGA=No |
||||||||
| 01 | Plastic fuel tank | 44L | 1 | 16117440790 | Shop at ECS Tuning | |||||
| 02 | Plastic filler pipe | 1 | 16117300493 | Shop at ECS Tuning | ||||||
| 03 | Filler pipe | 1 | 16117205699 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 | 1 | 07149166256 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Filler cap | 1 | 16117482902 | Shop at ECS Tuning | ||||||
| 07 | Tension strap | 1 | 10/2023 | 16117409234 | Shop at ECS Tuning | |||||
| 07 | Tension strap | 1 | 16115A4E031 | NoS | Shop at ECS Tuning | |||||
| 08 | Combination Allen bolt | 8.8 | 2 | 07147381865 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M8 | 3 | 07147381866 | Shop at ECS Tuning | |||||
| 10 | Wire clip, single | D16-18 | 1 | 16127313557 | Shop at ECS Tuning | |||||
| 11 | Base | 43X35X8 MM | 5 | 07147273549 | Shop at ECS Tuning | |||||
| 13 | Plastic nut for coarse threaded pin | M6 | 1 | 07147336362 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
