Fuel pipe and mounting parts for BMW MINI Cabrio F57 JCW (2021)

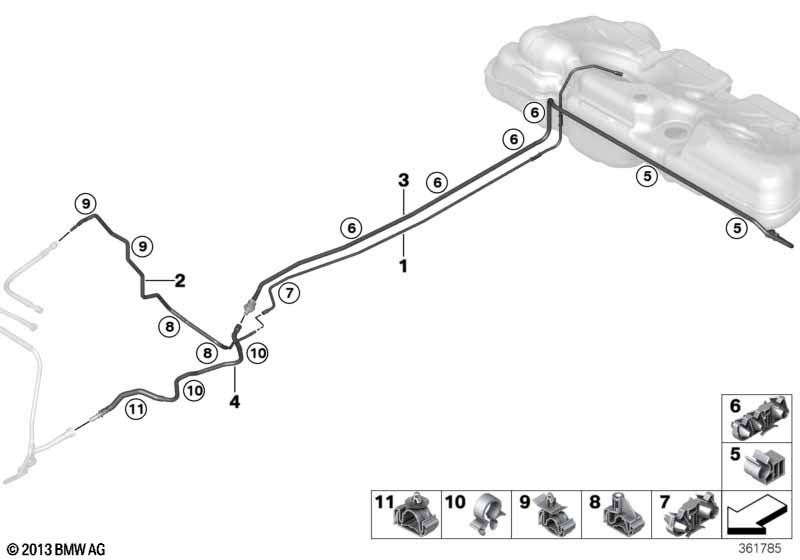

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China and Flexible Fuel and Outside fuel filter |
L8AAA=No S1AEA=No S1AKA=No |
||||||||
| 01 | Fuel supply line | 1 | 16117300596 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line front | 1 | 16127464633 | Shop at ECS Tuning | ||||||
| 03 | Scavenge air line | 1 | 16117300623 | Shop at ECS Tuning | ||||||
| 04 | Scavenging line front | 1 | 16137464627 | Shop at ECS Tuning | ||||||
| 05 | Pipe clip | D14 | 2 | 16126766397 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Wire clip, dual | D8,12 | 4 | 16127258752 | Shop at ECS Tuning | |||||
| 07 | Wire clip, dual | D8,12 | 1 | 16127258752 | Shop at ECS Tuning | |||||
| 08 | Pipe clip | D8 | 2 | 16126766396 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Wire clip, dual | 2 | 16129426343 | Shop at ECS Tuning | ||||||
| 10 | Wire clip, dual | 2 | 16129426342 | Shop at ECS Tuning | ||||||
| 11 | Wire clip, single | D14,5 | 1 | 16127360104 | Shop at ECS Tuning | |||||
