Activated Charcoal Filter/FUEL VENTILAT for BMW MINI Cabrio F57 LCI One (2022)

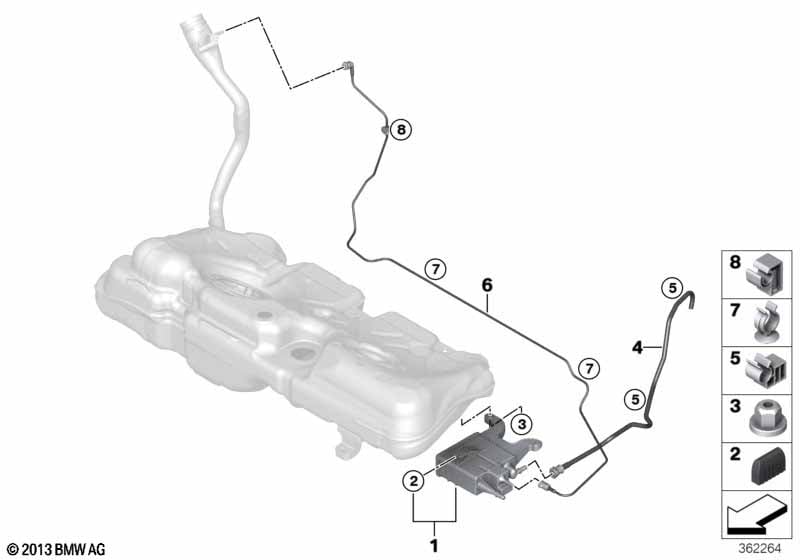

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F57 LCI One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea and Country control for Brazil 00464 |
L802A=No S8LBA=No |
||||||||
| For vehicles with Activated Charcoal Filter |
S805A=No |
|||||||||
| 01 | Activated Charcoal Filter | 1 | 16137476383 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | D=11-13MM | 1 | 32737714099 | Shop at ECS Tuning | |||||
| For vehicles with Activated Charcoal Filter |
S805A=Yes |
|||||||||
| 01 | Activated Charcoal Filter | 1 | 16117300489 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hose clamp | D=11-13MM | 1 | 32737714099 | Shop at ECS Tuning | |||||
| 02 | Cap | 1 | 16131183918 | $3.32 | Shop at ECS Tuning | |||||
| 03 | Cap nut | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Vent pipe | 1 | 16137300673 | Shop at ECS Tuning | ||||||
| 06 | breather line | 1 | 16117300651 | Shop at ECS Tuning | ||||||
| 07 | Pipe clip | D8 | 2 | 16126766396 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Wire clip, single | D=8MM | 1 | 16112283892 | Shop at ECS Tuning | |||||
