Tubing support for BMW 3 Series E36 318tds (2000)

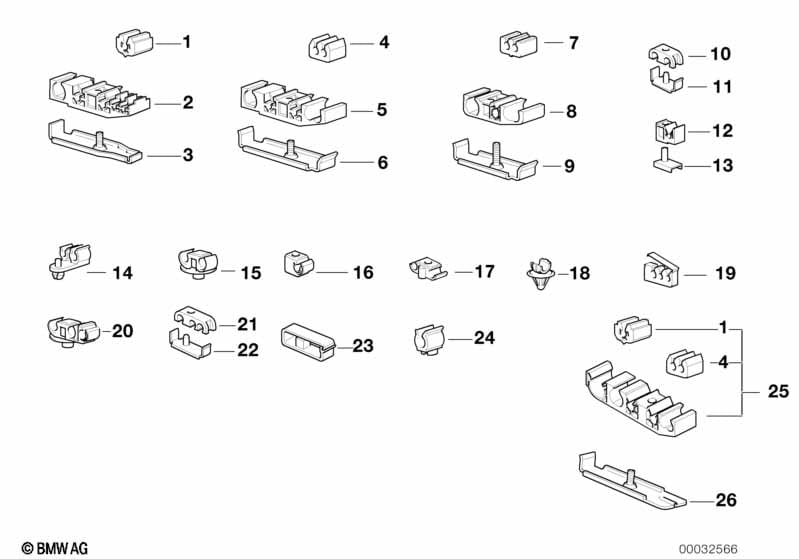

This Tubing support technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber buffer | 4 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 02 | Tubing support | 5-FACH | 4 | 16121180378 | $2.17 | Shop at ECS Tuning | ||||
| 03 | Fuel pipe bracket | 4 | 16121180416 | $2.17 | Shop at ECS Tuning | |||||
| For vehicles with Automatic stability control (ASC+T) |
S214A=Yes |
|||||||||
| 04 | Rubber buffer | 3 | 37131130202 | $0.45 | Shop at ECS Tuning | |||||
| 05 | Tubing support | 5-FACH | 3 | 16121181908 | $2.25 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rubber buffer | 3 | 37131130202 | $0.45 | Shop at ECS Tuning | |||||
| -- | Rubber buffer | 3 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 06 | Fuel pipe bracket | 3 | 16121181912 | $2.17 | Shop at ECS Tuning | |||||
| 14 | Clip | AKF | 1 | 16131181031 | $1.62 | Shop at ECS Tuning | ||||
| 15 | Pipe clip | 1 | 16121179396 | $1.08 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
