Activated Charcoal Filter/TUBING for BMW 3 Series E36 318is (1998)

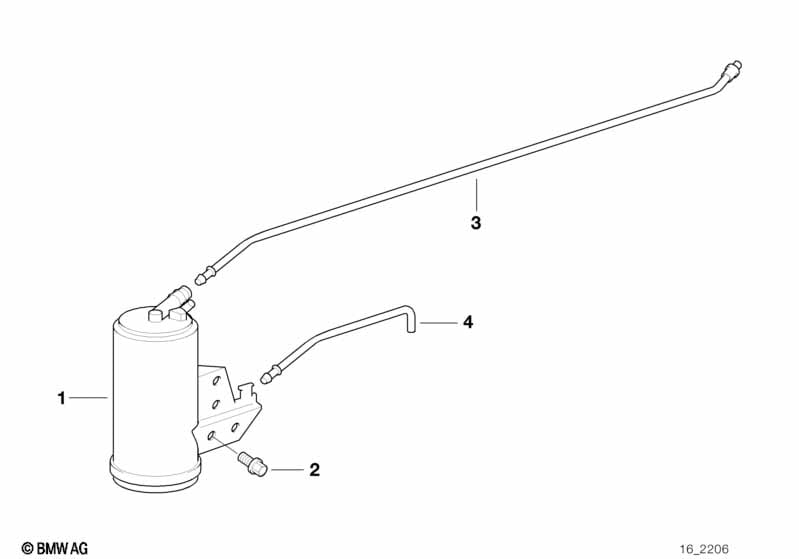

This Activated Charcoal Filter/TUBING technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Activated Charcoal Filter | 1 | 16131180886 | $87.89 | +core | Shop at ECS Tuning | ||||
| 03 | Vent pipe | AKF | 1 | 16131182866 | $16.75 | Shop at ECS Tuning | ||||
| 03 | Vent pipe | AKF | 1 | 06/1995 | 16131182866 | $16.75 | Shop at ECS Tuning | |||
| 04 | Outlet pipe f activated Carbon container | 1 | 16131184268 | $14.28 | Shop at ECS Tuning | |||||
| 04 | Outlet pipe f activated Carbon container | 1 | 06/1995 | 16131184268 | $14.28 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Activated Charcoal Filter/TUBING?
- This technical diagram illustrates the Activated Charcoal Filter/TUBING within the Fuel Supply group for the 3 Series E36 318is produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Activated Charcoal Filter (Part #16131180886).
- Which models use the hardware listed in this Activated Charcoal Filter/TUBING?
- The hardware and components featured in the Activated Charcoal Filter/TUBING are specific to the 3 Series E36 318is produced during 1998. These technical specifications ensure that parts like the Activated Charcoal Filter (16131180886) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Activated Charcoal Filter/TUBING assembly?
- Each item in the Activated Charcoal Filter/TUBING corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Activated Charcoal Filter by locating its position on the schematic, which then links to the official BMW part number 16131180886 for the Fuel Supply section.
