Fuel pipe and mounting parts for BMW 7 Series G12 730LdX (2018)

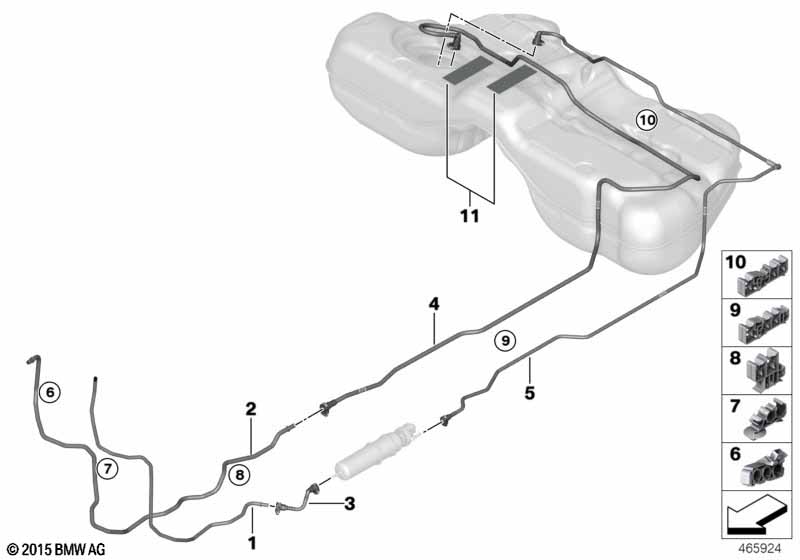

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line front | 1 | 16127356581 | Shop at ECS Tuning | ||||||
| 02 | Fuel return line front | 1 | 16127356587 | Shop at ECS Tuning | ||||||
| 03 | Fuel supply line filter | 1 | 16127356580 | Shop at ECS Tuning | ||||||
| 04 | Fuel return line rear | 1 | 16127356589 | Shop at ECS Tuning | ||||||
| 05 | Fuel supply line | 1 | 16127356579 | Shop at ECS Tuning | ||||||
| 06 | Clip | D12 D12/D10 D10 | 1 | 16127385405 | Shop at ECS Tuning | |||||
| 07 | Clip | 2XD12 D10 D5 | 1 | 16137384843 | Shop at ECS Tuning | |||||
| 08 | Clip | D12 D10 D5 | 2 | 16137385411 | Shop at ECS Tuning | |||||
| 09 | Clip | D12 2XD10 D5 | 5 | 16127359194 | Shop at ECS Tuning | |||||
| 10 | Clip | D12 D5 2XD10 | 3 | 16127359196 | Shop at ECS Tuning | |||||
| 11 | Damping strip | 60X30 MM | 2 | 16117297317 | Shop at ECS Tuning |
