Control unit for fuel pump for BMW 7 Series G11 LCI 745e (2022)

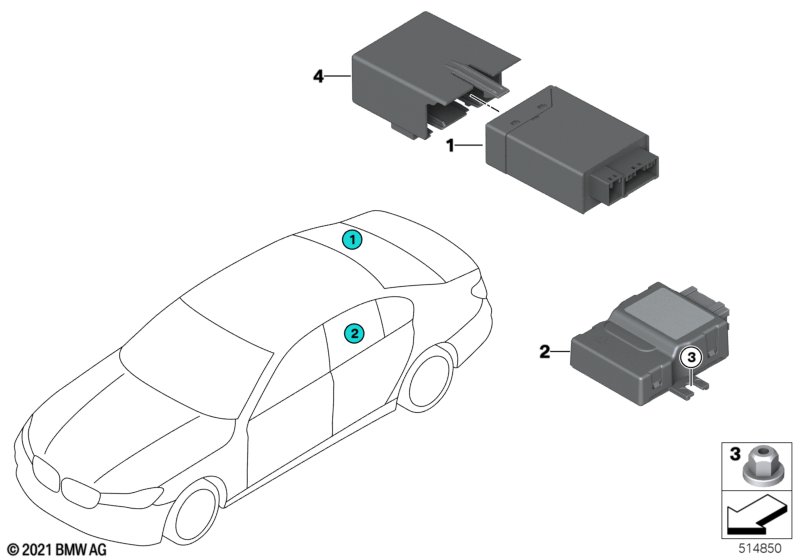

This Control unit for fuel pump technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 745e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressurized fuel tank control module | 1 | 16145A08530 | Shop at ECS Tuning | ||||||
| 02 | Control unit for fuel pump | FPC | 1 | 16149452468 | Shop at ECS Tuning | |||||
| 03 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Holder TFE | 1 | 61357410613 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G11 LCI 745e Control unit for fuel pump?
- This technical diagram illustrates the Control unit for fuel pump within the Fuel Supply group for the 7 Series G11 LCI 745e produced during 2022. It provides a detailed exploded view of the components, identifying key parts such as the Pressurized fuel tank control module (Part #16145A08530).
- Which models use the hardware listed in this Control unit for fuel pump?
- The hardware and components featured in the Control unit for fuel pump are specific to the 7 Series G11 LCI 745e produced during 2022. These technical specifications ensure that parts like the Pressurized fuel tank control module (16145A08530) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit for fuel pump assembly?
- Each item in the Control unit for fuel pump corresponds to the numbered list below the illustration. For the 7 Series G11 LCI 745e, you can identify the Pressurized fuel tank control module by locating its position on the schematic, which then links to the official BMW part number 16145A08530 for the Fuel Supply section.
