Fuel tank/mounting parts for BMW 5 Series G38 528Li (2017)

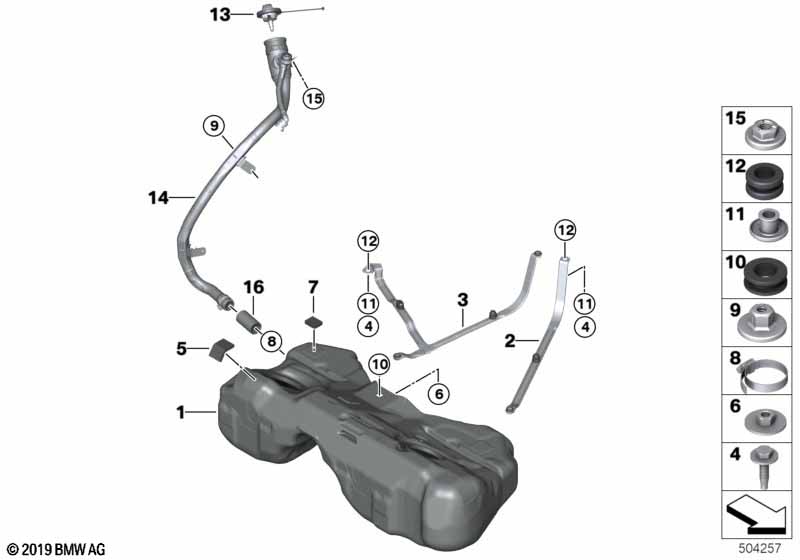

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G38 528Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic fuel tank | 68L | 1 | 02/2018 | 16117483045 | ENDED | Shop at ECS Tuning | |||
| 01 | Plastic fuel tank | 68L | 1 | 16117483964 | Shop at ECS Tuning | |||||
| 02 | Tension strap | 1 | 16117396326 | Shop at ECS Tuning | ||||||
| 03 | Tension strap | 1 | 16117396326 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt | M8X30-PF-U2-8.8 | 4 | 07119906672 | Shop at ECS Tuning | |||||
| 05 | Base | 80X50X10 | 2 | 16111178676 | $1.08 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex nut with plate | M8-8.8-ZNS3 | 1 | 07147204294 | Shop at ECS Tuning | |||||
| 07 | Base | 45X36X12 MM | 7 | 16117305657 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 09 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Rubber grommet | 1 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 11 | Spacer sleeve | 4 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| 12 | Rubber grommet | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 13 | Filler cap | 1 | 16117470341 | Shop at ECS Tuning | ||||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 13 | Filler cap | 1 | 10/2018 | 16117482902 | Shop at ECS Tuning | |||||
| For vehicles with Emissions standard EU5 |
S161A=No |
|||||||||
| 14 | Plastic filler pipe | 1 | 09/2017 | 10/2018 | 16138485576 | Shop at ECS Tuning | ||||
| For vehicles with Emissions standard EU5 |
S161A=Yes |
|||||||||
| 14 | Plastic filler pipe | 1 | 09/2017 | 10/2018 | 16117396325 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M6 | 1 | 01/2021 | 07147186111 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M6 | 1 | 07148842267 | Shop at ECS Tuning | |||||
| 16 | Filler pipe | 1 | 16115A02642 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G38 528Li Fuel tank/mounting parts?
- This technical diagram illustrates the Fuel tank/mounting parts within the Fuel Supply group for the 5 Series G38 528Li produced during 2017. It provides a detailed exploded view of the components, identifying key parts such as the Plastic fuel tank (Part #16117483045).
- Which models use the hardware listed in this Fuel tank/mounting parts?
- The hardware and components featured in the Fuel tank/mounting parts are specific to the 5 Series G38 528Li produced during 2017. These technical specifications ensure that parts like the Plastic fuel tank (16117483045) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank/mounting parts assembly?
- Each item in the Fuel tank/mounting parts corresponds to the numbered list below the illustration. For the 5 Series G38 528Li, you can identify the Plastic fuel tank by locating its position on the schematic, which then links to the official BMW part number 16117483045 for the Fuel Supply section.
