SCR system for BMW 5 Series G30 530d (2020)

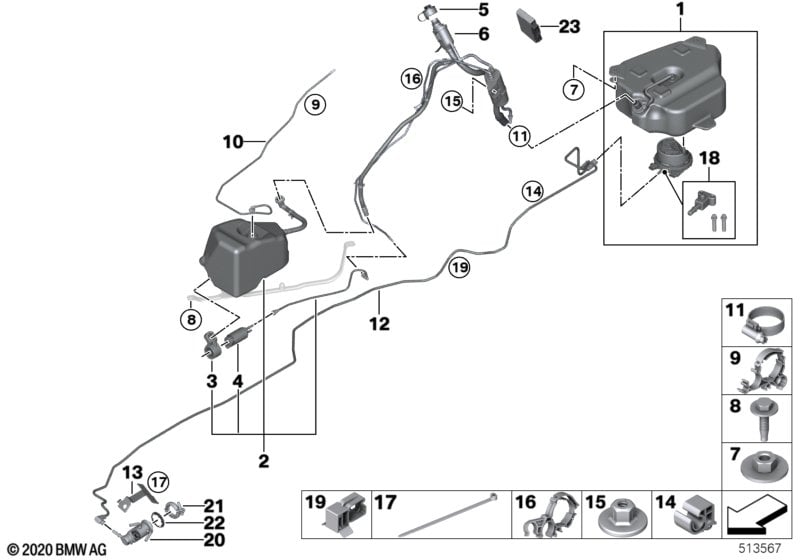

This SCR system technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Emissions standard EU5 and EU3 exhaust emissions standard |
S161A=No S169A=No |
|||||||||
| 01 | SCR container active | 1 | 16197391919 | Shop at ECS Tuning | ||||||
| 02 | SCR container passive | 1 | 16197381415 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Diesel exhaust fluid AdBlue | 0.5 US GALLONS | 1 | 83190441139 | $18.75 | Shop at ECS Tuning | ||||
| 03 | Part not available separately | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| Please order item 4 | ||||||||||
| 04 | Transfer pump | 1 | 16197354384 | Shop at ECS Tuning | ||||||
| 05 | Cover lid | 1 | 16197485924 | Shop at ECS Tuning | ||||||
| 06 | Filling system for SCR | 1 | 16199452575 | Shop at ECS Tuning | ||||||
| 07 | Combination nut | 1 | 07147305178 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M8X30-PF-U2-8.8 | 1 | 07119906672 | Shop at ECS Tuning | |||||
| 09 | Clip | 2 | 16197438411 | Shop at ECS Tuning | ||||||
| 10 | Vent line for passive tank | 1 | 16197455472 | Shop at ECS Tuning | ||||||
| 11 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Metering line | 1 | 16199455466 | Shop at ECS Tuning | ||||||
| 13 | Holder | 1 | 16197469126 | Shop at ECS Tuning | ||||||
| 14 | Clip, tubing | D8 | 5 | 16127421915 | Shop at ECS Tuning | |||||
| 15 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Repair kit connecting bracket | 1 | 16197485363 | Shop at ECS Tuning | ||||||
| 19 | Clip | 3 | 07147460904 | Shop at ECS Tuning | ||||||
| 20 | Metering unit | 1 | 11788580210 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| 21 | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 22 | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 23 | Control unit for SCR | 1 | 05/2023 | 16197491123 | ENDED | Shop at ECS Tuning | ||||
| 23 | Control unit SCR | 1 | 16195A34C95 | Shop at ECS Tuning | ||||||
