Fuel pump and fuel level sensor for BMW MINI Countryman F60 Cooper (2020)

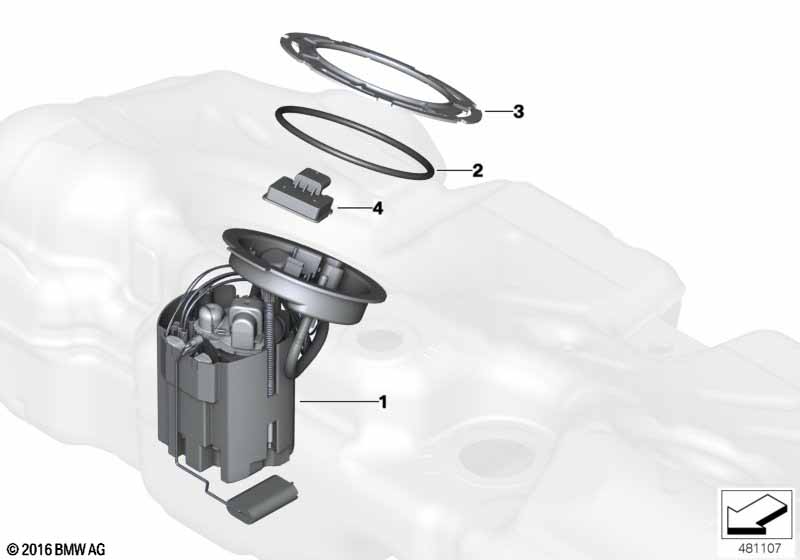

This Fuel pump and fuel level sensor technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supply module | 1 | 16117300463 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | O-ring | 1 | 07147372818 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | O-ring | 1 | 07147372818 | Shop at ECS Tuning | ||||||
| 02 | O-ring | 1 | 03/2019 | 16117476100 | Shop at ECS Tuning | |||||
| 03 | Closure ring | 1 | 03/2019 | 16117471828 | Shop at ECS Tuning | |||||
| 04 | Temp. sensor, leak diagnosis module | 1 | 16137333588 | Shop at ECS Tuning | ||||||
