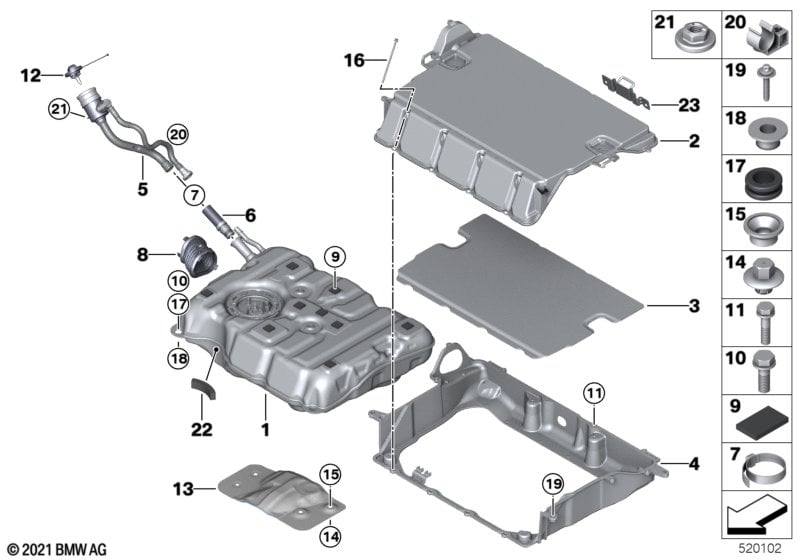

Fuel tank/mounting parts for BMW 5 Series G30 LCI 545eX (2023)
This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 545eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Metal fuel tank | 1 | 16117454672 | Shop at ECS Tuning | ||||||
| 02 | Housing cover with seal | 1 | 16117465569 | Shop at ECS Tuning | ||||||
| 03 | Foam part vibration damping | 1 | 16117389607 | Shop at ECS Tuning | ||||||
| 04 | Frame | 1 | 16119494188 | Shop at ECS Tuning | ||||||
| 05 | Filler pipe | 1 | 16117383194 | Shop at ECS Tuning | ||||||
| 06 | Filler pipe | 1 | 16117465570 | Shop at ECS Tuning | ||||||
| 07 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 08 | Grommet | 1 | 16117388297 | Shop at ECS Tuning | ||||||
| 09 | Damping strip | 30X30 MM | 9 | 16117297318 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M10X30-U1-10.9 | 4 | 07119903813 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M5X23-ZNS3 | 10 | 07148687534 | Shop at ECS Tuning | |||||
| 12 | Filler cap | 1 | 16117483446 | Shop at ECS Tuning | ||||||
| 13 | Heat shield | 1 | 16117389600 | Shop at ECS Tuning | ||||||
| 14 | Plastic nut | 4 | 16117454677 | Shop at ECS Tuning | ||||||
| 15 | Spacer bush | 4 | 16117454678 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M6X160X75 ZNS3 | 4 | 07119908686 | Shop at ECS Tuning | |||||
| 17 | Rubber grommet | 4 | 16117406983 | Shop at ECS Tuning | ||||||
| 18 | Spacer sleeve | 4 | 16115A1FA19 | Shop at ECS Tuning | ||||||
| 19 | ASA-Bolt | M10X55-U2-10.9- | 4 | 22316858990 | Shop at ECS Tuning | |||||
| 20 | Cable clip | D18 | 1 | 16131183931 | $1.08 | Shop at ECS Tuning | ||||
| 21 | Self-locking hex nut | M6 | 1 | 07148842267 | Shop at ECS Tuning | |||||
| 22 | Absorbing piece | 100X25X15MM | 1 | 16136755903 | $0.85 | Shop at ECS Tuning | ||||
| 23 | Mount for hinge | PHEV | 2 | 51477389688 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 545eX Fuel tank/mounting parts?
- This technical diagram illustrates the Fuel tank/mounting parts within the Fuel Supply group for the 5 Series G30 LCI 545eX produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Metal fuel tank (Part #16117454672).
- Which models use the hardware listed in this Fuel tank/mounting parts?
- The hardware and components featured in the Fuel tank/mounting parts are specific to the 5 Series G30 LCI 545eX produced during 2023. These technical specifications ensure that parts like the Metal fuel tank (16117454672) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuel tank/mounting parts assembly?
- Each item in the Fuel tank/mounting parts corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 545eX, you can identify the Metal fuel tank by locating its position on the schematic, which then links to the official BMW part number 16117454672 for the Fuel Supply section.
