Activated Charcoal Filter/FUEL VENTILAT for BMW MINI Countryman F60 LCI Cooper (2023)

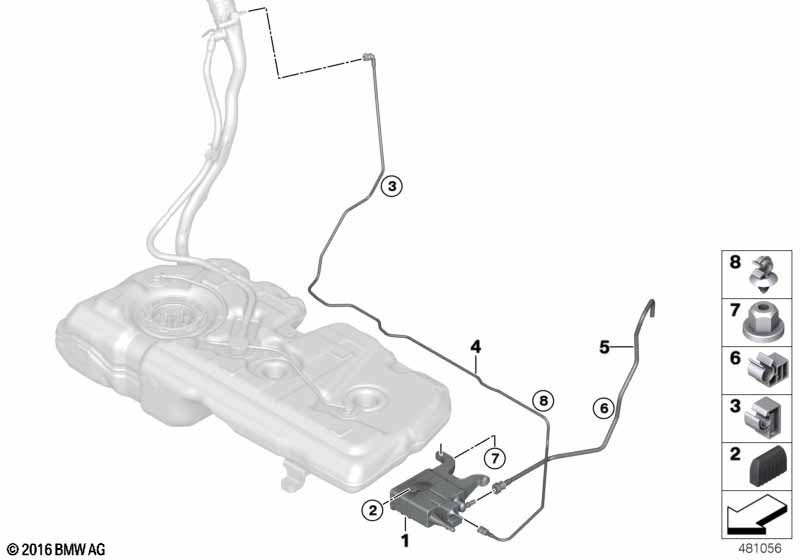

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China and Higher-capacity fuel tank and Country control for Brazil 00464 |
L8AAA=No S1AGA=No S8LBA=No |
||||||||
| For vehicles with Activated Charcoal Filter |
S805A=No |
|||||||||
| 01 | Activated Charcoal Filter | 1 | 16137476383 | Shop at ECS Tuning | ||||||
| For vehicles with Activated Charcoal Filter |
S805A=Yes |
|||||||||
| 01 | Activated Charcoal Filter | 1 | 16117300489 | Shop at ECS Tuning | ||||||
| 02 | Cap | 1 | 16131183918 | $3.32 | Shop at ECS Tuning | |||||
| 03 | Clip | 1 | 09/2020 | 07147460904 | Shop at ECS Tuning | |||||
| 04 | breather line | 1 | 16137348322 | Shop at ECS Tuning | ||||||
| 05 | Vent pipe | 1 | 16137300682 | Shop at ECS Tuning | ||||||
| 06 | Pipe clip | D14 | 2 | 16126766397 | $1.05 | Shop at ECS Tuning | ||||
| 07 | Cap nut | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Cable holder | 2 | 09/2020 | 61136917371 | $0.98 | Shop at ECS Tuning | ||||
