SCR system for BMW 5 Series G31 Touring 518d (2020)

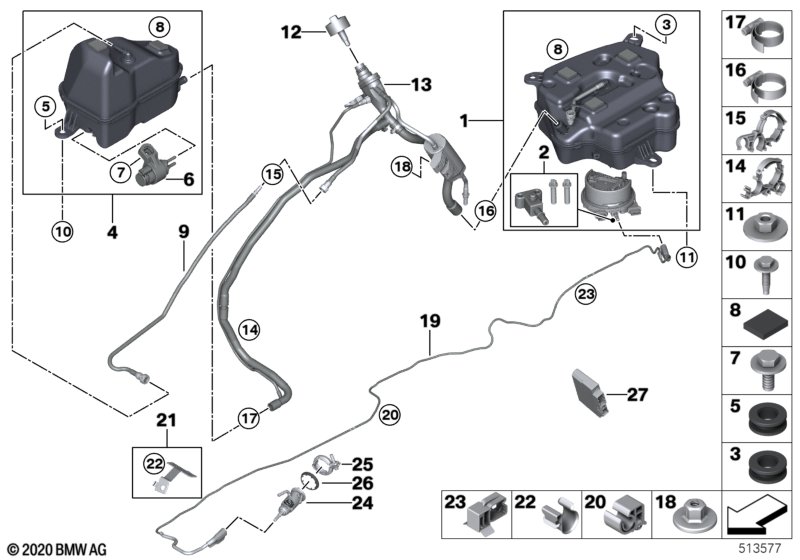

This SCR system technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 518d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | SCR container active | 1 | 16197391919 | Shop at ECS Tuning | ||||||
| 02 | Repair kit connecting bracket | 1 | 16197485363 | Shop at ECS Tuning | ||||||
| 03 | Decoupling element | D=8,5 | 3 | 16198741745 | Shop at ECS Tuning | |||||
| 04 | SCR container passive | 1 | 16197381415 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Diesel exhaust fluid AdBlue | 0.5 US GALLONS | 1 | 83190441139 | $18.75 | Shop at ECS Tuning | ||||
| 05 | Decoupling element | D=14 | 1 | 16198741744 | Shop at ECS Tuning | |||||
| 06 | Transfer pump | 1 | 16197354384 | Shop at ECS Tuning | ||||||
| 07 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 08 | Base | 43X35X8 MM | 5 | 07147273549 | Shop at ECS Tuning | |||||
| 09 | Vent line for passive tank | 1 | 16197455483 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | M8X30-PF-U2-8.8 | 1 | 07119906672 | Shop at ECS Tuning | |||||
| 11 | Combination nut | 3 | 07147305178 | Shop at ECS Tuning | ||||||
| 12 | Cover lid | 1 | 16197485924 | Shop at ECS Tuning | ||||||
| 13 | Filling system for SCR | 1 | 16197391943 | Shop at ECS Tuning | ||||||
| 14 | Clip | 1 | 16197438411 | Shop at ECS Tuning | ||||||
| 15 | Clip | 1 | 16117428319 | Shop at ECS Tuning | ||||||
| 16 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 17 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 18 | Plastic capnut with washer | D=22MM | 2 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 19 | Metering line | 1 | 16197377948 | Shop at ECS Tuning | ||||||
| 20 | Clip, tubing | D8 | 5 | 16127421915 | Shop at ECS Tuning | |||||
| 21 | Holder | 1 | 16197469126 | Shop at ECS Tuning | ||||||
| 22 | Cable clamp | 2 | 07147575208 | $0.89 | Shop at ECS Tuning | |||||
| 23 | Clip | 3 | 07147460904 | Shop at ECS Tuning | ||||||
| 24 | Metering unit | 1 | 11788580209 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| Please observe PUMA measure 65563674. | ||||||||||
| 25 | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 26 | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 27 | Control unit for SCR | 1 | 05/2023 | 16197491123 | ENDED | Shop at ECS Tuning | ||||
| 27 | Control unit SCR | 1 | 16195A34C95 | Shop at ECS Tuning | ||||||
