Fuel line / fuel filter for BMW 3 Series F35 LCI 320Li (2019)

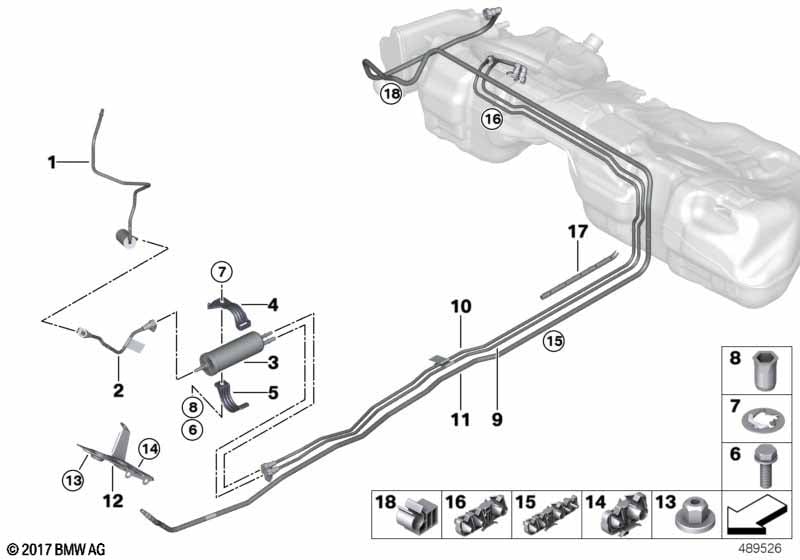

This Fuel line / fuel filter technical drawing provides a detailed breakdown of the assembly for the 3 Series F35 LCI 320Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line front | 1 | 16127375508 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line front | 1 | 16127351132 | Shop at ECS Tuning | ||||||
| 03 | Fuel filter | 1 | 16127451424 | Shop at ECS Tuning | ||||||
| 04 | Bracket fuel strainer | 1 | 16127292265 | Shop at ECS Tuning | ||||||
| 05 | Bow | 1 | 16127292266 | Shop at ECS Tuning | ||||||
| 06 | Hex bolt with washer | M8X25 ZNS3 | 1 | 07119904793 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Axial securing clip | 1 | 13328511095 | Shop at ECS Tuning | ||||||
| 08 | Blind rivet nut, flat headed | M8 | 1 | 07147132312 | Shop at ECS Tuning | |||||
| 09 | Fuel supply line rear | MIT SCHUTZ | 1 | 16127394050 | Shop at ECS Tuning | |||||
| 10 | Fuel return line rear | MIT SCHUTZ | 1 | 16127394051 | Shop at ECS Tuning | |||||
| 11 | Scavenge air line | 1 | 11/2018 | 16137478314 | Shop at ECS Tuning | |||||
| 12 | Guard plate, fuel lines | 1 | 16127244171 | Shop at ECS Tuning | ||||||
| 13 | Plastic nut for coarse threaded pin | M6 | 3 | 07147336362 | Shop at ECS Tuning | |||||
| 14 | Wire clip, dual | 1 | 16127277360 | Shop at ECS Tuning | ||||||
| 15 | Wiring clip, 5-clamp | 4 | 16127258750 | Shop at ECS Tuning | ||||||
| 16 | Wiring clip, triple | D8,8,12 | 2 | 16127258753 | Shop at ECS Tuning | |||||
| 17 | Guard cover | 1 | 16127318360 | Shop at ECS Tuning | ||||||
| 18 | Pipe clip | D14 | 1 | 16126766397 | $1.05 | Shop at ECS Tuning |
