Fuel tank/mounting parts for BMW 3 Series G20 Sedan LCI M340i (2022)

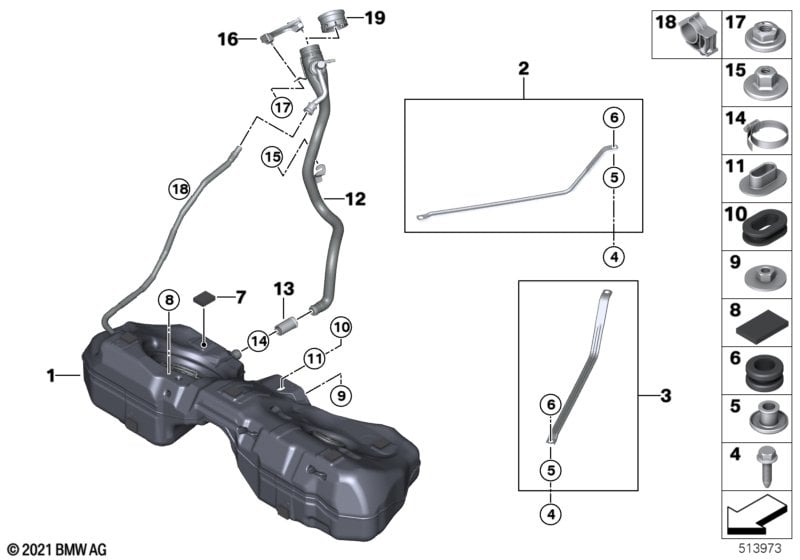

This Fuel tank/mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plastic fuel tank | 1 | 16119895863 | Shop at ECS Tuning | ||||||
| 02 | Tension strap | 1 | 16117618913 | Shop at ECS Tuning | ||||||
| 03 | Tension strap | 1 | 16117618913 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt | M8X30-PF-U2-8.8 | 4 | 07119906672 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | 4 | 16117194458 | $3.23 | Shop at ECS Tuning | |||||
| 06 | Rubber grommet | 4 | 16111182454 | $0.93 | Shop at ECS Tuning | |||||
| 07 | Foam-rubber pad | 45X45X12 MM | 7 | 16115A3B061 | Shop at ECS Tuning | |||||
| 08 | Damping strip | 60X30 MM | 1 | 16117297317 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M8-8.8-ZNS3 | 1 | 07147204294 | Shop at ECS Tuning | |||||
| 10 | Part not available separately | X | 00000000000 | Shop at ECS Tuning | ||||||
| 11 | Part not available separately | X | 00000000000 | Shop at ECS Tuning | ||||||
| 12 | Filler pipe | 1 | 16117449053 | Shop at ECS Tuning | ||||||
| 13 | Filler pipe | 1 | 16117403719 | Shop at ECS Tuning | ||||||
| 14 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 15 | Plastic capnut with washer | D=22MM | 1 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M6 | 2 | 07148842267 | Shop at ECS Tuning | |||||
| 18 | Clip | 2 | 16137466238 | Shop at ECS Tuning | ||||||
| 19 | Filler cap | 1 | 16117470341 | Shop at ECS Tuning |
