Activated Charcoal Filter/FUEL VENTILAT for BMW 3 Series G20 Sedan LCI 320i (2025)

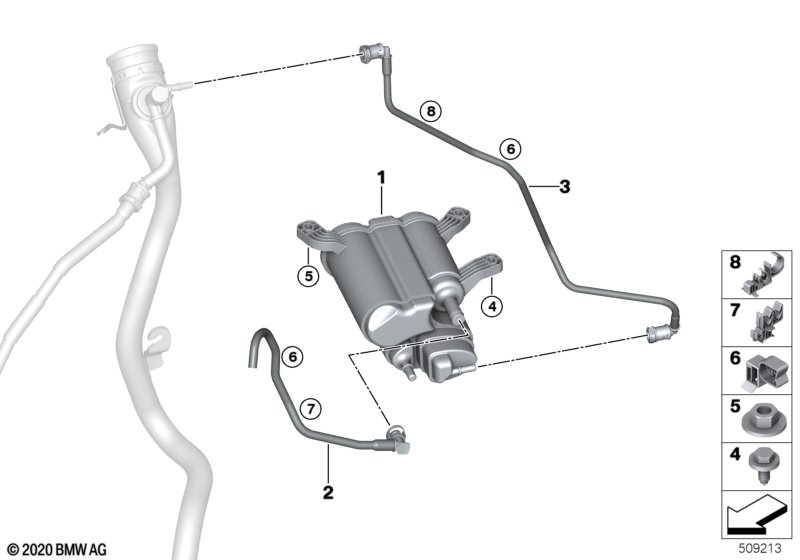

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea and National version China and Country control for Brazil 00464 |
L802A=No L8AAA=No S8LBA=No |
||||||||
| 01 | Activated Charcoal Filter | 1 | 16137371251 | Shop at ECS Tuning | ||||||
| 02 | Vent pipe | 1 | 16135A27D17 | Shop at ECS Tuning | ||||||
| 03 | breather line | 1 | 16117449055 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M6 | 1 | 07147311066 | Shop at ECS Tuning | |||||
| 06 | Wire clip, dual | 2 X D18 | 1 | 16137383196 | Shop at ECS Tuning | |||||
| 07 | Clip | D18 | 1 | 16127359193 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan LCI 320i Activated Charcoal Filter/FUEL VENTILAT?
- This technical diagram illustrates the Activated Charcoal Filter/FUEL VENTILAT within the Fuel Supply group for the 3 Series G20 Sedan LCI 320i produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Activated Charcoal Filter (Part #16137371251).
- Which models use the hardware listed in this Activated Charcoal Filter/FUEL VENTILAT?
- The hardware and components featured in the Activated Charcoal Filter/FUEL VENTILAT are specific to the 3 Series G20 Sedan LCI 320i produced during 2025. These technical specifications ensure that parts like the Activated Charcoal Filter (16137371251) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Activated Charcoal Filter/FUEL VENTILAT assembly?
- Each item in the Activated Charcoal Filter/FUEL VENTILAT corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan LCI 320i, you can identify the Activated Charcoal Filter by locating its position on the schematic, which then links to the official BMW part number 16137371251 for the Fuel Supply section.
