SCR system for BMW 3 Series G20 Sedan 320dX (2019)

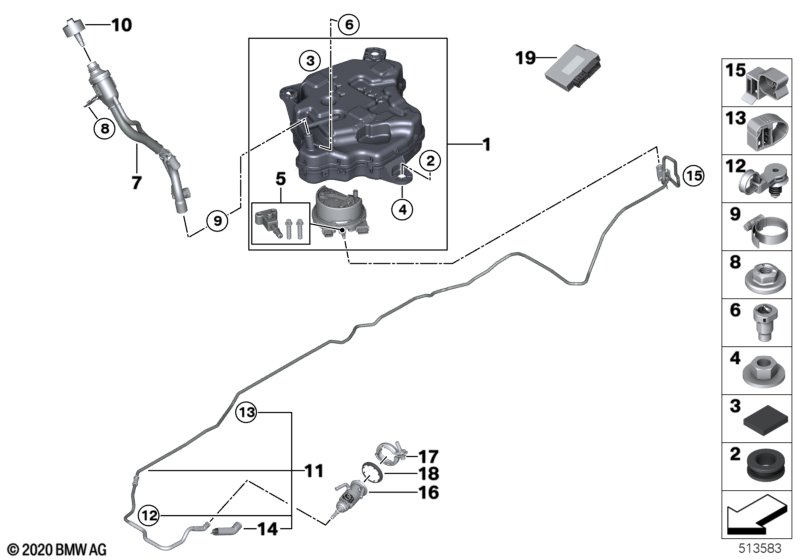

This SCR system technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea and Higher-capacity fuel tank |
L802A=No S1AGA=No |
||||||||
| 01 | SCR container active | 1 | 16197454338 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Diesel exhaust fluid AdBlue | 0.5 US GALLONS | 1 | 83190441139 | $18.75 | Shop at ECS Tuning | ||||
| 02 | Rubber grommet | 3 | 16111182609 | $1.13 | Shop at ECS Tuning | |||||
| 03 | Base | 43X35X8 MM | 3 | 07147273549 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6 | 3 | 07147311066 | Shop at ECS Tuning | |||||
| 05 | Repair kit connecting bracket | 1 | 16197485363 | Shop at ECS Tuning | ||||||
| 06 | Cap | 1 | 16197210528 | $7.17 | Shop at ECS Tuning | |||||
| 07 | Filling system for SCR | 1 | 16197485088 | Shop at ECS Tuning | ||||||
| 08 | Self-locking hex nut | M6 | 1 | 01/2021 | 07147186111 | Shop at ECS Tuning | ||||
| 08 | Self-locking hex nut | M6 | 1 | 07148842267 | Shop at ECS Tuning | |||||
| 09 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 10 | Cover lid | 1 | 16197485924 | Shop at ECS Tuning | ||||||
| 11 | Metering line | 1 | 16197451323 | Shop at ECS Tuning | ||||||
| 12 | Holder | 1 | 16197469126 | Shop at ECS Tuning | ||||||
| 13 | Clip | 7 | 07147460904 | Shop at ECS Tuning | ||||||
| 14 | Heat protection case metering line | 1 | 16195A2D550 | Shop at ECS Tuning | ||||||
| 15 | Clip, tubing | D12.5 | 1 | 16197464237 | Shop at ECS Tuning | |||||
| 16 | Metering unit | 1 | 11788580209 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| Please observe PUMA measure 65563674. | ||||||||||
| 17 | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 18 | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 19 | Control unit for SCR | 1 | 01/2024 | 16198740049 | ENDED | Shop at ECS Tuning | ||||
| 19 | Control unit for SCR | 1 | 16195A34C94 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
