Fuel pipe and mounting parts for BMW 3 Series G20 Sedan 330d (2022)

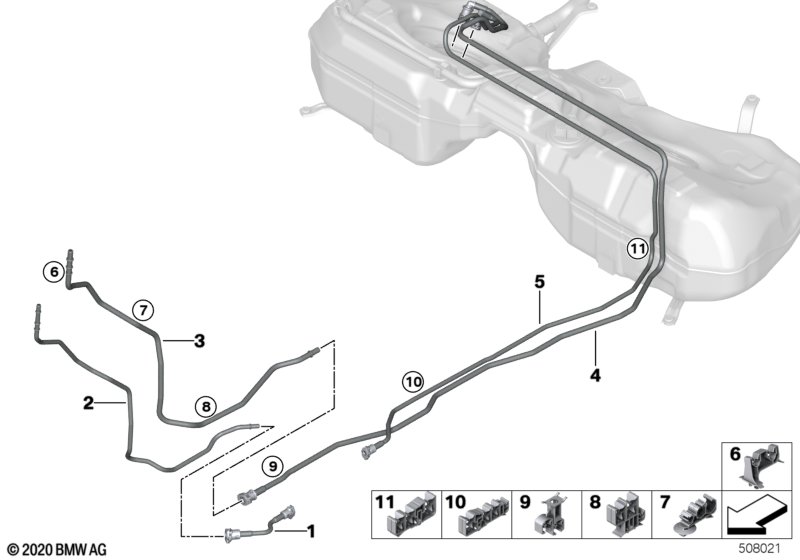

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel supply line filter | 1 | 16127458378 | Shop at ECS Tuning | ||||||
| 02 | Fuel supply line front | 1 | 08/2021 | 16125A1A318 | Shop at ECS Tuning | |||||
| 03 | Fuel return line front | 1 | 08/2021 | 16125A1A320 | Shop at ECS Tuning | |||||
| 04 | Fuel return line rear | 1 | 16127449067 | Shop at ECS Tuning | ||||||
| 05 | Fuel supply line rear | 1 | 16127449065 | Shop at ECS Tuning | ||||||
| 06 | Clip | 1 | 16127470792 | Shop at ECS Tuning | ||||||
| 07 | Clip | D12 D10 D5 | 1 | 08/2021 | 16135A1A325 | Shop at ECS Tuning | ||||
| 08 | Clip | D12 D10 D5 | 1 | 16137385411 | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 16128485706 | Shop at ECS Tuning | ||||||
| 10 | Clip | D12 2XD10 D5 | 6 | 16127359194 | Shop at ECS Tuning | |||||
| 11 | Wire clip, dual | D10/D12 | 1 | 16127397510 | Shop at ECS Tuning |
