Fuel pipe and mounting parts for BMW 3 Series G20 Sedan LCI 330e (2025)

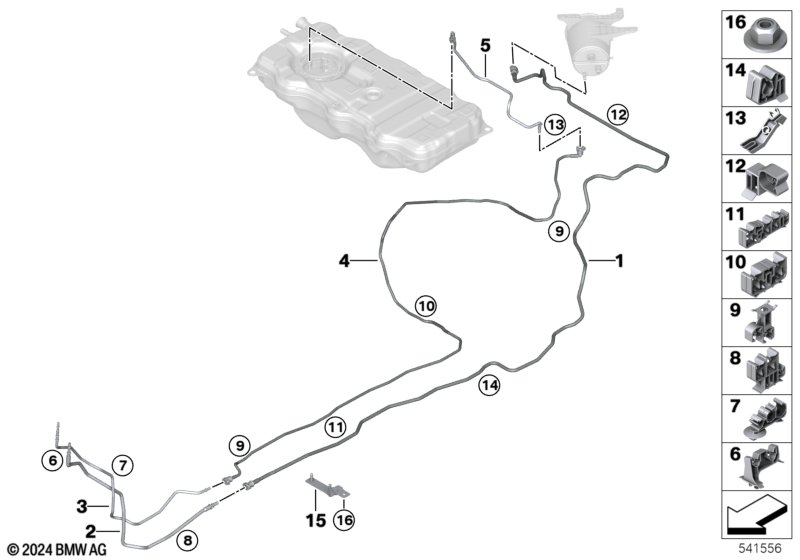

This Fuel pipe and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea and Country control for Brazil 00464 |
L802A=No S8LBA=No |
||||||||
| 01 | Scavenging line rear | 1 | 16137458374 | Shop at ECS Tuning | ||||||
| 01 | Scavenging line rear | 1 | 16135A68231 | NoS | Shop at ECS Tuning | |||||
| 02 | Scavenging line front | 1 | 16135A1A321 | Shop at ECS Tuning | ||||||
| 03 | Fuel supply line front | 1 | 16125A1A319 | Shop at ECS Tuning | ||||||
| 04 | Fuel supply line | 1 | 16127458377 | Shop at ECS Tuning | ||||||
| 04 | Fuel supply line | 1 | 16125A55898 | NoS | Shop at ECS Tuning | |||||
| 05 | Fuel supply line | 1 | 16129488217 | Shop at ECS Tuning | ||||||
| 06 | Clip | 1 | 16127470792 | Shop at ECS Tuning | ||||||
| 07 | Clip | D12 D10 D5 | 1 | 16135A1A325 | Shop at ECS Tuning | |||||
| 08 | Clip | D12 D10 D5 | 1 | 16137385411 | Shop at ECS Tuning | |||||
| 09 | Clip | 2 | 16128485706 | Shop at ECS Tuning | ||||||
| 10 | Clip | 2XD10 | 6 | 16137385409 | Shop at ECS Tuning | |||||
| 10 | Clip | 6 | 16129489780 | Shop at ECS Tuning | ||||||
| 11 | Clip | D12 2XD10 D5 | 3 | 16127359194 | Shop at ECS Tuning | |||||
| 12 | Clip, tubing | D12.5 | 6 | 16197464237 | Shop at ECS Tuning | |||||
| 13 | Clip | 1 | 16119487761 | Shop at ECS Tuning | ||||||
| 14 | Pipe clip | 1 | 07145A1A519 | Shop at ECS Tuning | ||||||
| 15 | Bracket insulation valve | 1 | 16138488068 | Shop at ECS Tuning | ||||||
| 16 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
