Control units for BMW 3 Series G20 Sedan 330e (2019)

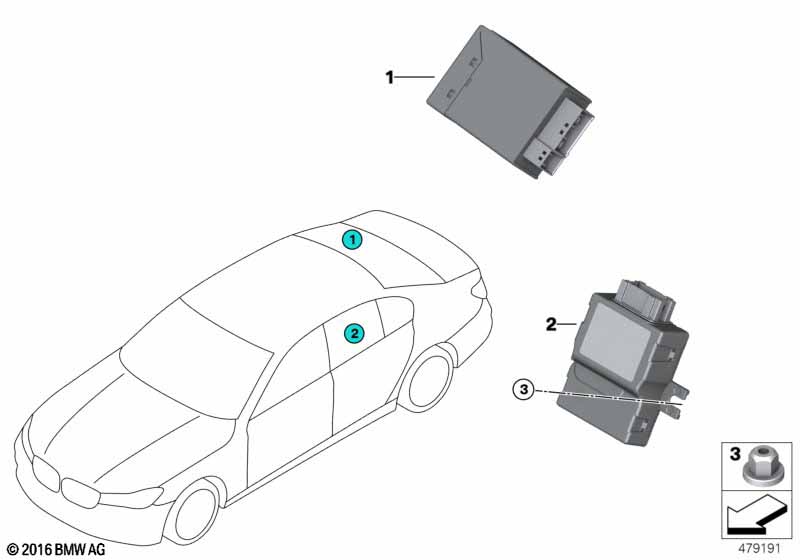

This Control units technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressurized fuel tank control module | 1 | 16145A08539 | Shop at ECS Tuning | ||||||
| 02 | Control unit for fuel pump | FPC | 1 | 16149452468 | Shop at ECS Tuning | |||||
| 03 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330e Control units?
- This technical diagram illustrates the Control units within the Fuel Supply group for the 3 Series G20 Sedan 330e produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Pressurized fuel tank control module (Part #16145A08539).
- Which models use the hardware listed in this Control units?
- The hardware and components featured in the Control units are specific to the 3 Series G20 Sedan 330e produced during 2019. These technical specifications ensure that parts like the Pressurized fuel tank control module (16145A08539) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control units assembly?
- Each item in the Control units corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330e, you can identify the Pressurized fuel tank control module by locating its position on the schematic, which then links to the official BMW part number 16145A08539 for the Fuel Supply section.
