Activated Charcoal Filter/FUEL VENTILAT for BMW 8 Series G14 Convertible M850iX (2025)

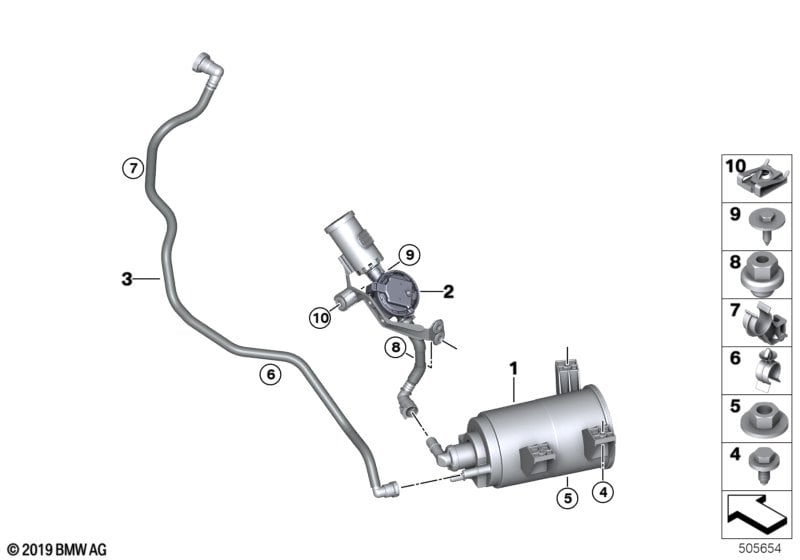

This Activated Charcoal Filter/FUEL VENTILAT technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible M850iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Korea or National version China |
L802A=Yes L8AAA=Yes |
||||||||
| 01 | Activated Charcoal Filter | 1 | 16137371251 | Shop at ECS Tuning | ||||||
| 02 | Venting line with leak diagnosis module | 1 | 16137440377 | Shop at ECS Tuning | ||||||
| 03 | breather line | 1 | 16137440382 | Shop at ECS Tuning | ||||||
| 04 | Hex bolt with washer | M6X25-U2 | 2 | 07119905871 | $0.59 | Shop at ECS Tuning | ||||
| 05 | Hex nut with plate | M6 | 1 | 07147311066 | Shop at ECS Tuning | |||||
| 06 | Pipe clip | 1 | 16116766685 | $0.57 | Shop at ECS Tuning | |||||
| 07 | Clip | D18 | 1 | 16127359193 | Shop at ECS Tuning | |||||
| 08 | Hex nut | 2 | 61358230971 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | TS5X20SW10 D=22 | 1 | 09/2022 | 07149481168 | Shop at ECS Tuning | ||||
| 10 | C-clip nut | 1 | 51717065773 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G14 Convertible M850iX Activated Charcoal Filter/FUEL VENTILAT?
- This technical diagram illustrates the Activated Charcoal Filter/FUEL VENTILAT within the Fuel Supply group for the 8 Series G14 Convertible M850iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Activated Charcoal Filter (Part #16137371251).
- Which models use the hardware listed in this Activated Charcoal Filter/FUEL VENTILAT?
- The hardware and components featured in the Activated Charcoal Filter/FUEL VENTILAT are specific to the 8 Series G14 Convertible M850iX produced during 2025. These technical specifications ensure that parts like the Activated Charcoal Filter (16137371251) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Activated Charcoal Filter/FUEL VENTILAT assembly?
- Each item in the Activated Charcoal Filter/FUEL VENTILAT corresponds to the numbered list below the illustration. For the 8 Series G14 Convertible M850iX, you can identify the Activated Charcoal Filter by locating its position on the schematic, which then links to the official BMW part number 16137371251 for the Fuel Supply section.
