SCR system for BMW 2 Series G42 220d (2025)

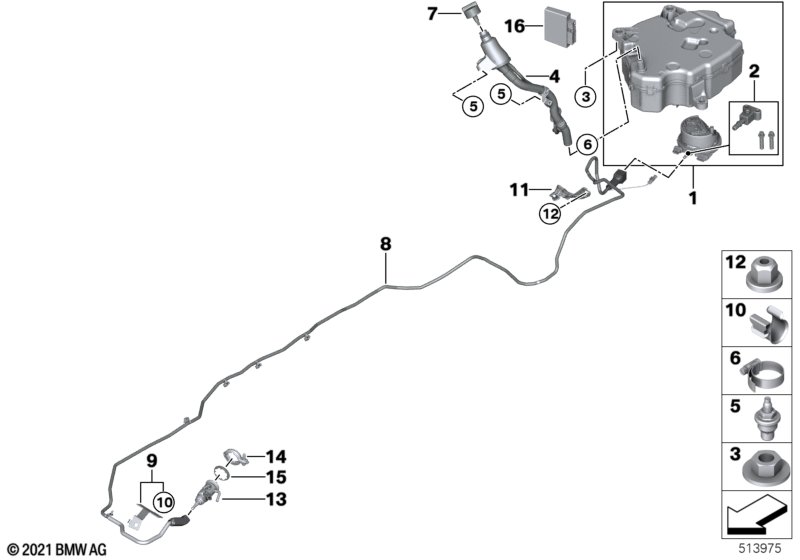

This SCR system technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Emissions standard EU5 |
S161A=No |
||||||||
| 01 | SCR container active | 1 | 04/2024 | 16195A9CE89 | Shop at ECS Tuning | |||||
| 02 | Repair kit connecting bracket | 1 | 16197485363 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M6 | 3 | 07147311066 | Shop at ECS Tuning | |||||
| 04 | Filling system for SCR | 1 | 16198740575 | Shop at ECS Tuning | ||||||
| 05 | Self-locking hex nut | M6 | 2 | 07148842267 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Cover lid | 1 | 16197485924 | Shop at ECS Tuning | ||||||
| 08 | Metering line | 1 | 16198740576 | Shop at ECS Tuning | ||||||
| 09 | Holder | 1 | 16197469126 | Shop at ECS Tuning | ||||||
| 10 | Cable clamp | 2 | 07147575208 | $0.89 | Shop at ECS Tuning | |||||
| 11 | Holder | 1 | 16229845388 | Shop at ECS Tuning | ||||||
| 12 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Metering unit | 1 | 11788580209 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| Please observe PUMA measure 65563674. | ||||||||||
| 14 | Screw clamp | 1 | 18308590002 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 15 | Gasket | 1 | 18308595104 | Shop at ECS Tuning | ||||||
| 16 | Control unit for SCR | 1 | 16195A34C94 | Shop at ECS Tuning | ||||||
